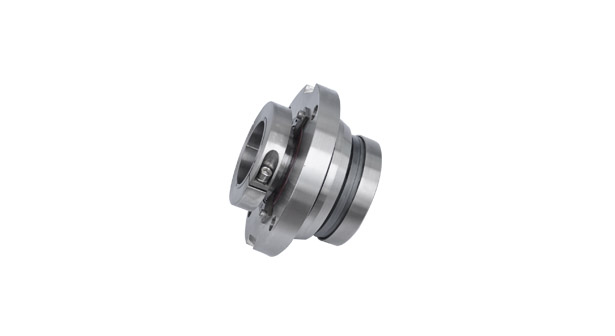

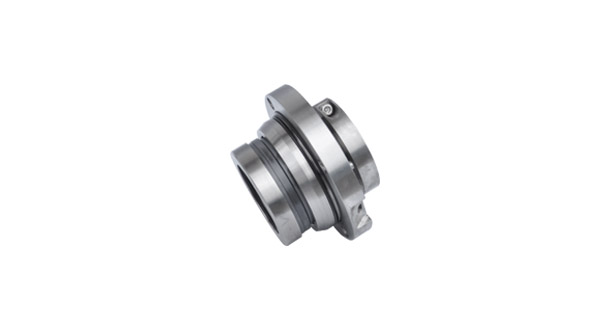

HTM-55S350Z seals for corrosion resistant pump

Product Description:Wu Er Wu pump LCF series of wear and corrosion resistance for supporting the pump cartridge mechanical seal.
Product No.:HTM-55S350Z
PID No.:141304
Product Series:Cartridge Mechanical seals
Application Industry:Metallurgy
Pump Type:Slurry pump,Mud pumps,Sludge pumpChemical pumps
Product Description



Sdms Seal Co., Ltd. is one of the largest cartridge seals manufacturer, engineering and repaire in China.We produce balanced single cartridge seal,balanced double cartridge seal, unbalanced single cartridge seal, unbalanced double cartridge seal, single cartridge seal equipped with flush,  double cartridge seal equipped with flush for Chemical slurry pumps,heavy duty slurry pumps,corrosion resistant chemical process pumps,high temperature process pumps, high pressure process pumps  and equipment revolving.We offer products to a wide range of mechanical seal users across the nation.We carry AES,Sterling,Vulcan,Pac-Seal, John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Aflas, and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: HTM-55S350Z  Style: mechanical seals cartridge seals


Material
Sealing ring : SiC
Other metal parts : 2Cr13/304/316/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Wuerwu pump LCF series of wear and corrosion resistance for supporting the pump cartridge mechanical seal. Our company as one of 525 pump mechanical seal supply units, providing the long-term series of mechanical seals, shaft diameter involved have 35,40,50,55,60,80.Single seal cartridge mechanical seal, the replacement is simple and convenient to install, comes with flushing circulation system, the water can wash away the external sealing surface normal leakage medium and particulate matter, prevent long-term corrosion and deposition of particles impregnated sealing medium.

Recommended Applications Pumps and Rotating Equipment
Xiangyang Wuerwu Pump Industry Co.,Ltd
LCF corrosion resistant pump

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un proveedor completo de dise?o, fabricación y reparacion de sistemas de bombas.Fabricamos sellos mecanicos para procesos, sellos mecanicos de  cartucho, sellos mecanicos de fuelle, sellos mecanicos para fuelle metálico, sellos mecanicos de ballesta para bombas, industria química, petroquimica, mezcladores, reactores,agitadores, tratamiento de agua, etc. Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.


view:1089    lable:LCF seals,corrosion resistant pump seal,wuerwu pump seal,HTM-55S350Z,cartridge seals manufacturer,proveedor sello bomba china,proveedor cierre bomba china,  Metallurgy  Slurry pump  Chemical pumps  Xiangyang Wu Er Wu Pump Industry Co.,Ltd.
Application
Design features
Single cartridge seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1600 r/min
Shaft via:55 mm
Technical data
