Pump seals HR3-198

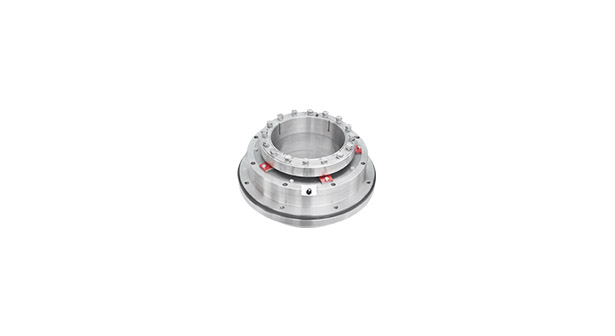

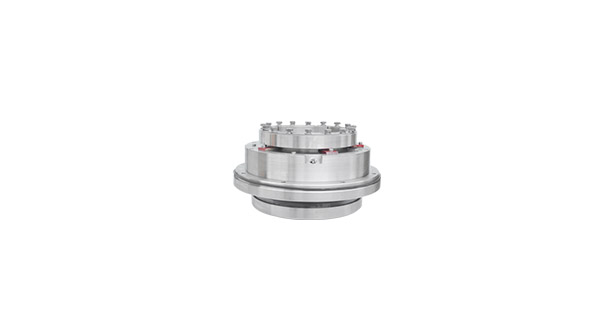

Product Description:Big diameter shaft mechanical seal. Cartridge type mechanism for easy installation and replacement.
Product No.:HR3-198
PID No.:141388
Product Series:Cartridge Mechanical seals
Application Industry:Power plantMetallurgy
Pump Type:Slurry pump,Mud pumps,Sludge pumpProcess pumps
Product Description



Sdms Seal Co., Ltd. is one of the largest pump seals exporter, manufacturer and repaire in China.
We produce balanced single cartridge seal,balanced double cartridge seal, unbalanced single cartridge seal, unbalanced double cartridge seal, single cartridge seal equipped with flush, double cartridge seal suited for heavy-duty, double cartridge seal equipped with flush for pumps,reactors,agitators,mixers,fermenters,filters and rotating equipment.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,AES,Sterling,Vulcan,Pac-Seal and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: HR3C-198  Style: mechanical seals cartridge seals

Material
Sealing ring : SiC
Other metal parts : 2Cr13/304/316/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Big diameter shaft mechanical seal. Cartridge type mechanism for easy installation and replacement. Reasonable rinse cycle cooling system, increases the mechanical seal to maximize pot life, reduces installation and replacement frequency, effectively saving production and processing costs. The overall structure of silicon carbide seal ring and corrosion-resistant metal alloy material, ensure that the mechanical seal in a variety of corrosive media functioning.

Recommended Applications Pumps and Rotating Equipment
Xiangyang Wu Er Wu Pump Industry Co.,Ltd
LC900/1150, LC800/1000,LC700/900,LC700/898

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es una compa?ía completo de dise?o, fabricación y reparacion de sello mecanico y cierres mecanicos. Fabricamos cierres mecánicos de resorte unico, cierres mecánicos de resortes multiples, cierres mecánicos de fuelle, cierres para fuelle metálico, sellos de ballesta para bombas, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.













view:1077    lable:LC800/1000,LC700/900, wuerwu pump seal,process pumps seal, pump seals exporter,pump seals china,compa?ía sello mecanico china, compa?ía cierre mecanico china,  Power plant  Metallurgy  Slurry pump  Process pumps  Xiangyang Wu Er Wu Pump Industry Co.,Ltd.
Application
Design features
Single cartridge seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:800 r/min
Shaft via:198 mm
Technical data
