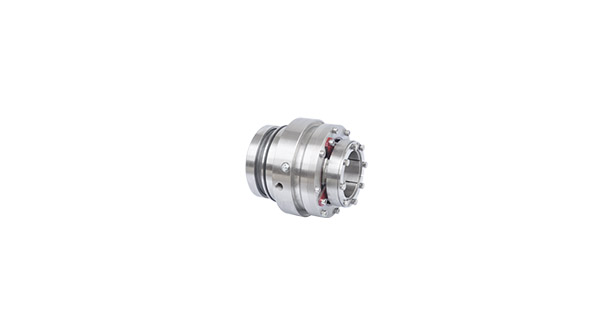

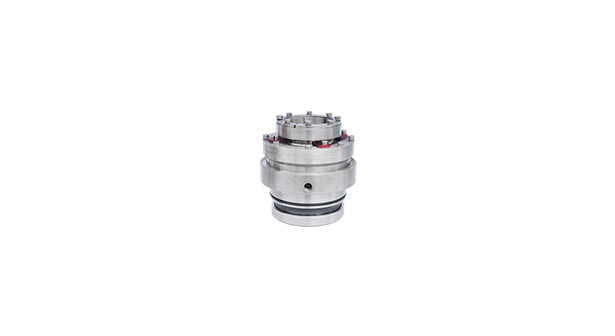

40SV30M-5.45 sellos mezcladores

Product Description:Replacement America SHARPE MIXER (74.6) mechanical seal. Dimensions and mechanical mixer seal the original exactly. Cartridge single face structure, installation quick and easy replacement.
Product No.:40SV30M-5.45
PID No.:141386
Product Series:Cartridge Mechanical seals
Application Industry:Oil and gas industry
Pump Type:Mixer
Product Description




Sdms Seal Co., Ltd. is a mixer seals manufacturer of design,engineering and repair of  industrial mixing and blending.We produce large size mixer and agitator seal, single mixer and agitator seal, cartridge double mixer and agitator seal, double mixer and agitator seal, external mixer and agitator seal, short canister mixer and agitator seal,dual pusher mixer and agitator seal for single rotor mixers,double rotor mixers,food grade mixers,cement mixers,fertilizer mixers. Our products can replacement of John Crane,Chesterton, Flowserve,Sharpe,Kenwood,Jensen,Cement,Ekato,Lightnin,AES,Cheminneer,Pfaudler and customized OEM mixer and agitator seals etc. We also do repair of mixer and agitator seal of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: 40SV30M-5.45  Style: mechanical cartridge mixer seals


Material
Sealing ring : SiC
Other metal parts : 2Cr13/304/316/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Replacement America Sharpe mixer (74.6) mechanical seal. Dimensions and mechanical mixer seal the original exactly. Cartridge single face structure, installation quick and easy replacement. Sintered silicon carbide seal ring, corrosion-resistant alloy of the base part and high temperature corrosion resistance of the auxiliary rubber seals, so that the mechanical seal can adapt to a variety of complex conditions.

Recommended Applications Pumps and Rotating Equipment
Replacement Sharpe mixer

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un proveedor completo de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos.Fabricamos sellos mecanicos para agitadores
sellos mecanicos para mezcladores, sellos mecanicos para reactores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Chesterton, Flowserve,Sharpe,Kenwood,Jensen,Cement,Ekato,Lightnin,AES,Cheminneer,Pfaudler entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.


Replacement models, reemplazar modelos
More Models, Más Modelos

Sharpe mixer seals type Sharpe -74.6, Sello mecanicoSharpe tipo Sharpe -74.6,

view:1140    lable:mixer seals manufacturer,sharpe mixer seal, sharpe-74.6,40SV30M-5.45,sellos agitadores, sellos mezcladores, sellos reactores, sharpe sellos mecanicos,proveedores sello reactores,proveedores sello mezcladores,proveedores sello agitadores,  Oil and gas industry  Mixer  Sharpe
Application
Design features
Single cartridge seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1000 r/min
Shaft via:74.6 mm
Technical data
