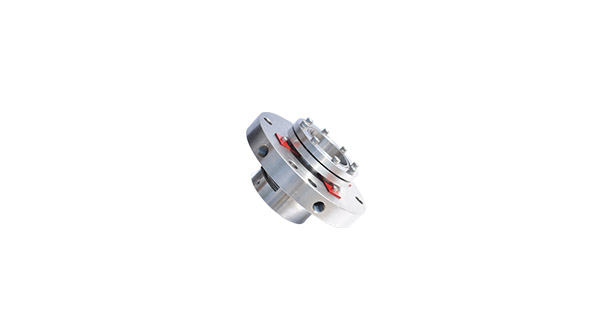

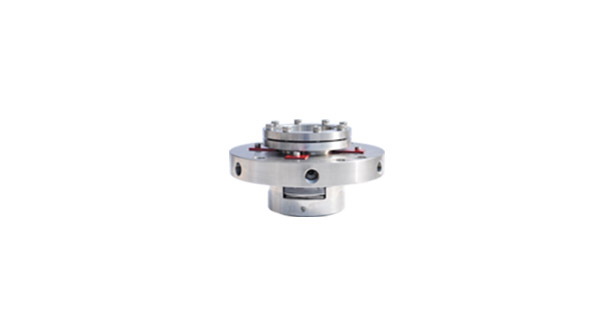

DGW350-150 circulating pumps seals

Product Description:Integrated seals type structure, clamping drive, installation simple and easy to replace.Built-in cooling circulation system.It is special use for circulating pumps seals.
Product No.:DGW350-150
PID No.:141416
Product Series:Cartridge Mechanical seals
Application Industry:Oil and gas industry
Pump Type:Circulating pump
Product Description




Sdms Seal Co., Ltd. is one of the largest mech seals seller, manufacturer and repaire in China.
We produce balanced single cartridge seal,balanced double cartridge seal, unbalanced single cartridge seal, unbalanced double cartridge seal, single cartridge seal equipped with flush, double cartridge seal suited for heavy-duty, double cartridge seal equipped with flush for pumps,reactors,agitators,mixers,fermenters,filters and equipment revolving.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Aflas,AES,Sterling,Vulcan,Pac-Seal and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee. Our service is responsive, dependable and driven by your requirments.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: DGW350-150  Style: mechanical seals cartridge seals


Material
Sealing ring : SiC
Other metal parts : 2Cr13/304/316/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Integrated seals type structure, clamping drive, installation simple and easy to replace.Built-in cooling circulation system.It is special use for circulating pumps seals.It can adapt to a wider temperature range and more complex medium.Waveform spring provide compensation loop compensation.Waveform spring has a small footprint, elastic stability and combat ability, etc.This type of mechanical seal compensation system is designed in the sealing medium, the waveform spring can better guarantee the normal operation of mechanical seal.

Recommended Applications Pumps and Rotating Equipment
Shandong Shuanglun Co., Ltd.
DG series pums
ssc pump seal

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un fabricante de sellos mecanicos y cierres mecanicos de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos.Fabricamos sellos mecanicos de resorte unico, sellos mecanicos de resortes multiples, sellos mecanicos de fuelle, cierres para fuelle metálico, sellos de ballesta para bombeos, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.


view:1376    lable: Integrated mech seals,Shuanglun DG pump seal,circulating pumps seals,mech seals seller,fabricante cierre mecanico,fabricante sello mecanico,bombeo sello china,bombeo cierre china,ssc pump china,  Oil and gas industry  Circulating pump  Shandong Shuanglun Co., Ltd.
Application
Design features
Single cartridge seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.5 Mpa
Rinse:External flushing circulation
Speed:1450 r/min
Shaft via:90 mm
Technical data
