SDMS-171/80JH-EA for Jp pumps seals

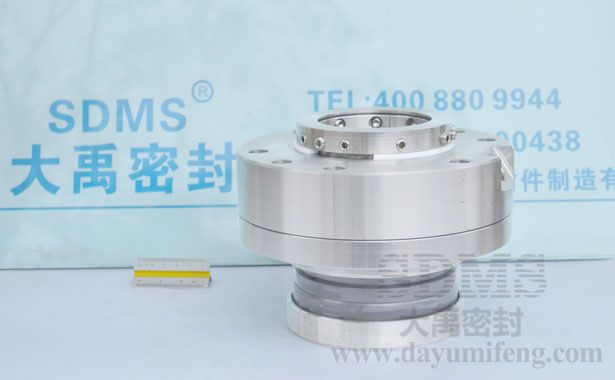

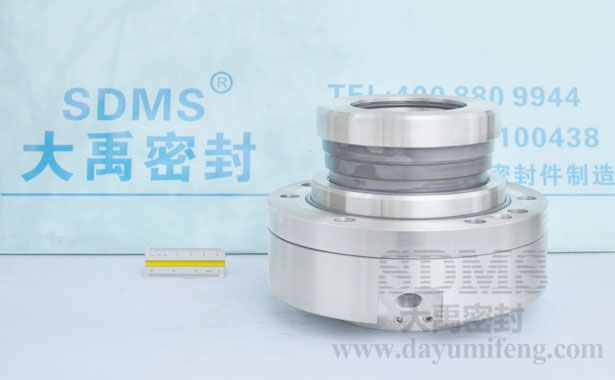

Product Description:Cartridge mechanical seal for Kunming Jiahe JFZ series of wear and corrosion resistance pumps .
Product Description






Sdms Seal Co., Ltd. is one of the largest cartridge seals distributor,manufacturer and repaire in China.
We produce hightly qualified balanced single cartridge seal,balanced double cartridge seal, unbalanced single cartridge seal, unbalanced double cartridge seal, single cartridge seal equipped with flush, double cartridge seal suited for heavy-duty, double cartridge seal equipped with flush for water pumps,industrial pumps,centrifugal pump, mud pump, polypropylene pump etc.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt, AES,Vulcan, and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: SDMS-17180JH-EA  Style: mechanical seals cartridge seals

Material
Sealing ring : hard metal / SiC
Other metal parts : 2Cr13/304/316/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Cartridge mechanical seal for Jp pumps JFZ series of wear and corrosion resistance pumps application . Our company is as one of Kunming Jiahe pump mechanical seal , long-term to provide JFZ series of pump mechanical seal, different sizes shaft diameter 25-160mm , the single cartridge mechanical seal, installation is simple and convenient replacement, design the cleansing circulation holes. We need to turn on the mechanical seal flushing water before the operation, otherwise there would be damage to the mechanical seal. Rinse water also play a role in cooling and lubrication, effectively prevent the accumulation of heat due to the mechanical seal is burning. In the case of flush water, even if the pump chamber has not been circulating medium, but also to ensure the mechanical seal is not burning.

Recommended Applications Pumps and Rotating Equipment
Kunming Jiahe Science & Technology Co.,Ltd.
Jp pumps seals,JFZ300-635,JFZ50-300,JFZ80-210,JFZ100-320,JFZ150-350,JFZ250-430

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un distribuidor de sello mecanico y cierre mecanico para bombas de agua.Fabricamos sellos mecanicos cartucho simple, cierres mecanicos cartucho simple, sellos mecanicos de fuelle, sellos mecanicos de fuelle metálico, sellos mecanicos de ballesta, sellos cartuchos simples, sellos dobles de cartucho para bombas horizontables, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.


view:1744    lable:JFZ300-635, JFZ50-300,JFZ80-210,JFZ100-320, JFZ150-350,JFZ250-430,mechanical seals,SDMS-171/80, JFZ pumps seals,jh pumps seals,  Metallurgy  Fine chemical  Pharmaceutical  Fertilizer  Chemical industry  Slurry pump  Acid pump  Centrifuge pump  Kunming Jiahe Science & Technology Co.,Ltd.
Application
Design features
Single cartridge seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1450 r/min
Shaft via:80 mm
Technical data
