Replacemente AEB-60 cierres reactores

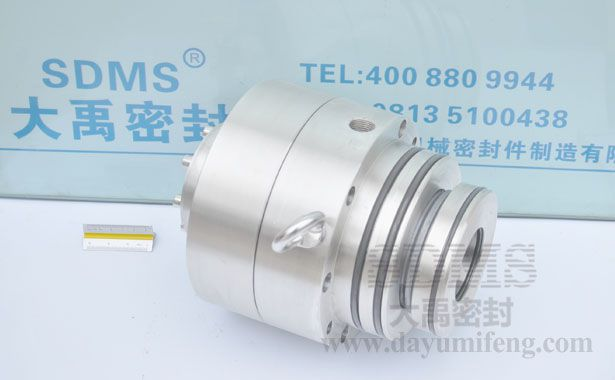

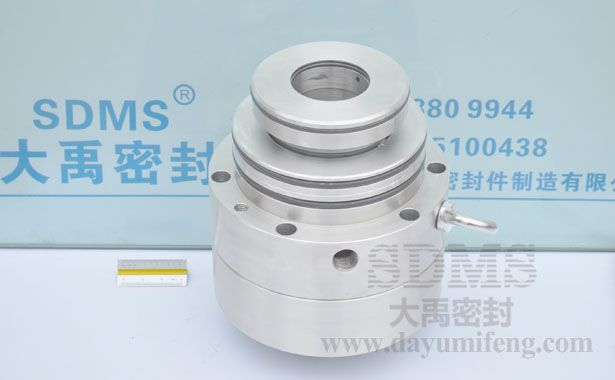

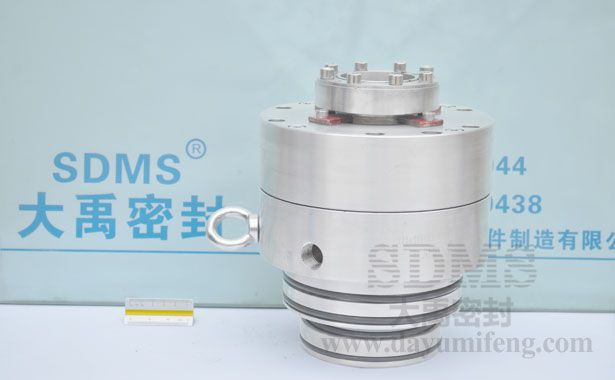

Product Description:Single cartridge mechanical seal for replacemente Lightnin mixer application and as Lightnin mixer accessory products.
Product Description













Sdms Seal Co., Ltd. is a mixer, agitator and reactor seals factory of design,engineering and repair of  industrial mixing and blending.We produce large size mixer, agitator and reactor seals, single mixer, agitator and reactor seals, cartridge double mixer, agitator and reactor seals, double mixer, agitator and reactor seals, external mixer, agitator and reactor seals ,short canister mixer, agitator and reactor seals,dual pusher mixer, agitator and reactor seals for single rotor mixers,double rotor mixers,food grade mixers,cement mixers,fertilizer mixers. Our products can replacement of John Crane,Chesterton, Flowserve,Sharpe,Kenwood,Jensen,Cement,Ekato,Lightnin,AES,Cheminneer,Pfaudler and customized OEM mixer and agitator seals etc. We also do repair of mixer and agitator seal of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: AEB-60  Style: mechanical cartridge mixer, agitator and reactor seals


Material
Sealing ring : SiC
Other metal parts : 304/316L
Auxiliary seal : FPM/FKM/MVQ

Design features
Single cartridge mechanical seal for Lightnin mixer application and as Lightnin mixer accessory products. We can provide Lightnin mixer with shaft diameter 60mm, 80mm ,100mm and other supporting mechanical seal, installation dimensions completely sealed cavity with a stirrer, run protection.

Recommended Applications Pumps and Rotating Equipment
Replacemente Lightnin blender, mixer, agitator and reactor

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es unos fabricantes, distribuidores y proveedores de cierres mecanicos   reactores completo de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos.Fabricamos cierres mecanicos para agitadores
cierres mecanicospara mezcladores, cierres mecanicospara reactores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Chesterton, Flowserve,Sharpe,Kenwood,Jensen,Cement,Ekato,Lightnin,AES,Cheminneer,Pfaudler entre otros.Tambien hacemos reparación de cierres mecanicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Replacement models, reemplazar modelos
More Models, Más Modelos

Lightnin reactor seals type 1VSF-22, cierres mecanicos Lightnin reactor tipo 1VSF-22,
Lightnin reactor seals type 2VSF-37, cierres mecanicos Lightnin reactor tipo 2VSF-37,
Lightnin reactor seals type 2VSF-45, cierres mecanicos Lightnin reactor tipo 2VSF-45,


view:1373    lable:cierres reactores, fabricantes cierres mezcladores,distribuidores cierres mezcladores,proveedores cierres mezcladores,mixer seals factory, agitator seals factory,reactor seals factory,mixer seals,agitator seals,reactor seals,  Power plant  Metallurgy  Coal chemical industry  Mixer  Plant spray tower side agitator  Reactor stirrer  Lightnin
Application
Design features
Single cartridge seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1500 r/min
Shaft via:80 mm
