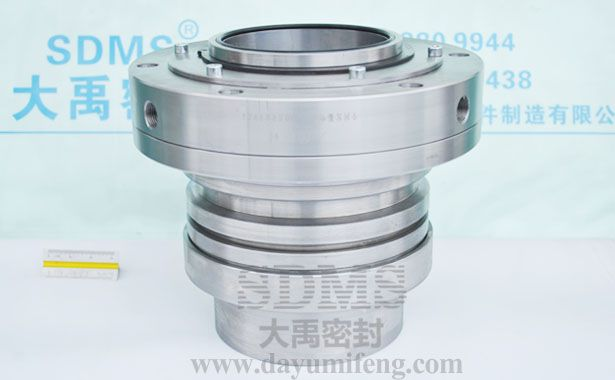

TJ-210/112 mechanical seal for SLZC pumps

Product Description:Single cartridge mechanical seal for Shandong Shuanglun SLZC pumps application.
Product Description
















Sdms Seal Co., Ltd. is one of the largest mech seals distributor ,seller, and repaire in China.
We produce balanced single cartridge seal,balanced double cartridge seal, unbalanced single cartridge seal, unbalanced double cartridge seal, cartridge seal equipped with flush, double cartridge seal suited for heavy-duty, double cartridge seal equipped with flush for pumps,reactors,agitators,mixers,fermenters,filters and equipment revolving.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Aflas,AES,Sterling,Vulcan,Pac-Seal and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee. Our service is responsive, dependable and driven by your requirments.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: TJ-210112  Style: mechanical seals cartridge seals

Material
Sealing ring : hard metal / SiC
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge mechanical seal for Shandong Shuanglun SLZC pumps application.Cartridge single face structure, the instation is only the upper envelope machine shaft with screw connection , assembled the pump impeller and chamber lid without the need of manual adjustments mechanical seal position,the installation and replacement is very convenient. During use, it must be connected to external water rinse cycle, otherwise there is the risk of being damaged. Single spring placed flush cycle space,providing outside the loop flushing water, it can effectively prevent corrosion and clogging of the spring and take away the heat generated by friction and sealing ring skeleton oil seal, lubricate simultaneously enhance the mechanical seal pot life.

Recommended Applications Pumps and Rotating Equipment
Shandong Shuanglun Co., Ltd.

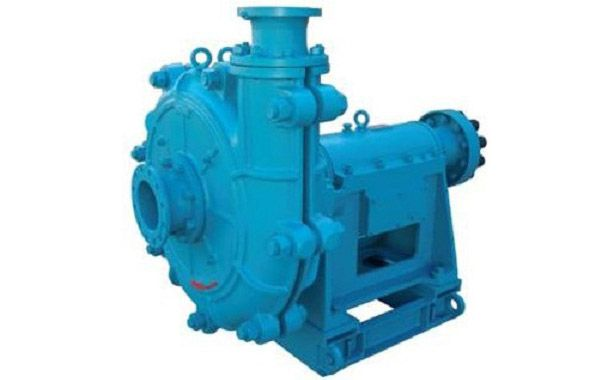

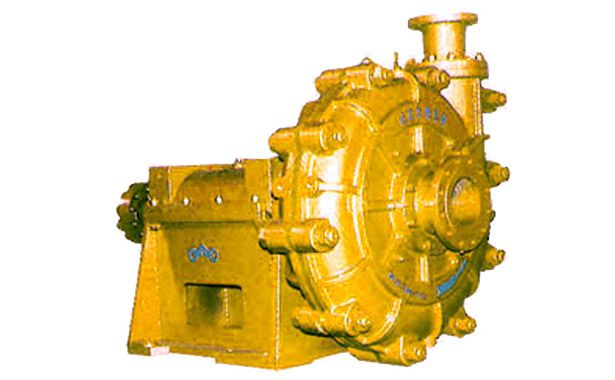

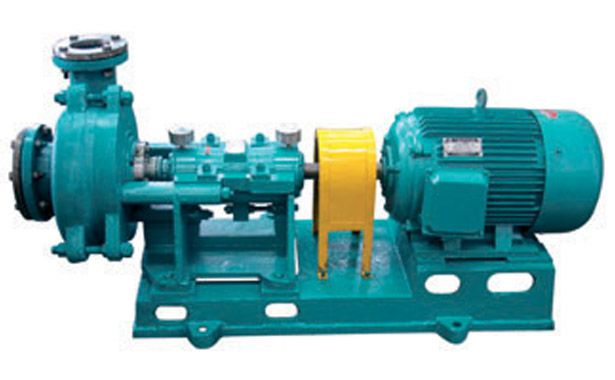

SLZC series pumps,SLZC150-740, SLZC200-630,SLZC200-760, SLZC300-600,SLZC150-980, SLZC300-700,

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un fabricante de sellos mecanicos y cierres mecanicos de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos.Fabricamos sellos mecanicos cartuchos simples, sellos mecanicos cartuchos dobles, sellos mecanicos de fuelle, cierres para fuelle metálico, sellos de ballesta para bombeos, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.


view:1114    lable:ssc pump china,shuanglun pumps seals,shuanglun SLZC pumps seal,mech seals distributor,fabricante sellos mecanicos china,fabricante cierres mecanicos china,balanced single cartridge seal,  Metallurgy  Pharmaceutical  Fertilizer  Chemical industry  Slurry pump  Dredge pump  Water / sewage water pumps  Chemical standard pumps  Chemical pumps  Dredging pumps  Shandong Shuanglun Co., Ltd.
Application
Design features
Single cartridge seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1200 r/min
Shaft via:112 mm
Technical data
