KGJ-140 for Horizontal centrifugal pump

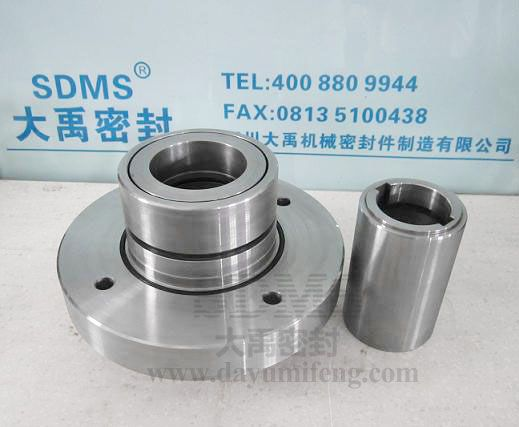

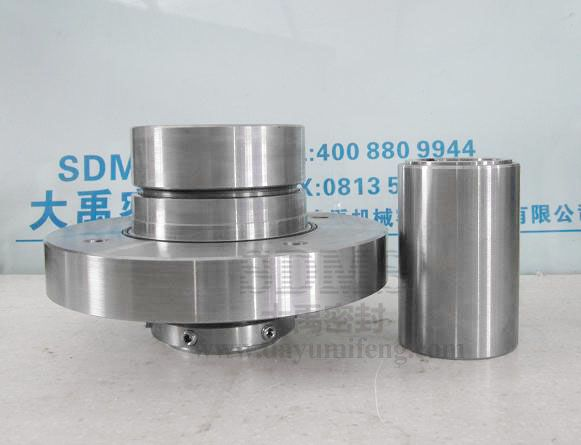

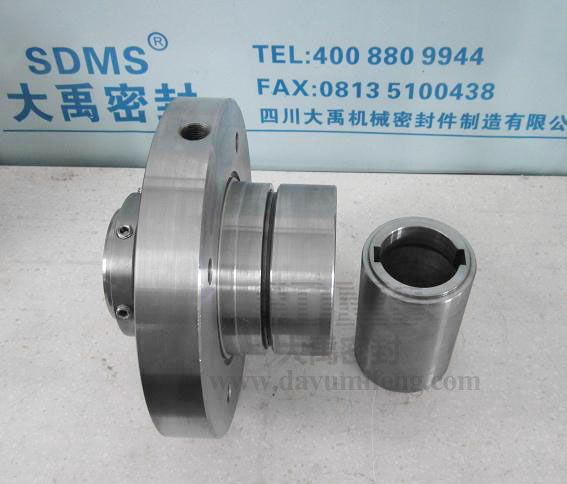

Product Description:Single cartridge mechanical seal for Shijiazhuang Kingda Pump SLZC pumps application.
Product Description







Sdms Seal Co., Ltd. is one of the largest mechanical pump seals exporter, manufacturer and repaire in China.
We produce highest quality the widest range of standard mechanical seals, balanced single cartridge seal,balanced double cartridge seal, unbalanced single cartridge seal, unbalanced double cartridge seal, single cartridge seal equipped with flush, double cartridge seal suited for heavy-duty, double cartridge seal equipped with flush for chemicals industrial pumps,marine,mixers,blowers in variety of service applictions.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann,Chesterton, ,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt, AES and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: KGJ-140  Style: mechanical seals cartridge seals



Material
Sealing ring : hard metal
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge mechanical seal for Shijiazhuang Kingda Pump SLZC pumps application. Cartridge single face structure,the installation doesn't need to artificially adjust the position of the mechanical seal,it can easy install seal machine after removing the stopper .During use, it must be connected to external water rinse cycle, otherwise there is the risk of being damaged. Mechanical seal is designed to cover the biaxial structure,it does not directly drive the screw adapter on the shaft, to prevent the risk of the shaft with a screw scratch. Meanwhile, the presence of the inner sleeve can also prevent the formation of a variety of media to the shaft corrosion ,it has advantage with long service life .
By limiting the pump space, compensating force provided by the compensating ringof circumferentially equispaced small spring.The force of the compensation spring is formed of small equispaced that is more uniform and stable than the large springs, it is even better effect in the seal face to prevent local wear.

Recommended Applications Pumps and Rotating Equipment
Shijiazhuang Kingda Pump Industry Group Co., Ltd.
Kingda Slurry Pump Company
KWP Horizontal centrifugal pump
KWP250-400 , KWP250-500
KWP350-400 , KWP400-710
KWP500-630 , KWP250-630


Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es una fabrica sello mecanico completo de dise?o, fabricación y reparacion de nivel internacional en China.Fabricamos sello mecanico de resorte ondulado, sello mecanico de resorte ballesta, sello mecanico de resortes multiples, sello mecanico de fuelle para bombas, sistemas de sellos, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.


view:1080    lable:KGJ-140,mechanical pump seal,KWP250-400, KWP250-500 ,KWP350-400,kingda pump seal,centrifugal pump seal china,fabrica sello mecanico china,sello mecanico bombas china,  Metallurgy  Fine chemical  Coal chemical industry  Slurry pump  Water / sewage water pumps  Chemical standard pumps  Chemical pumps  Mud pumps  Hebei Shibeng Technology Co.,Ltd.
Application
Design features
Single cartridge seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:800 r/min
Shaft via:140 mm
Technical data
