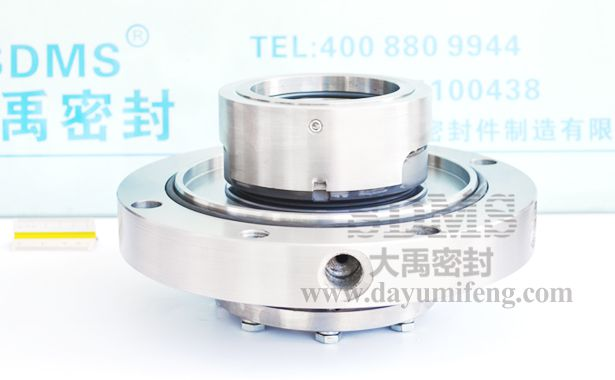

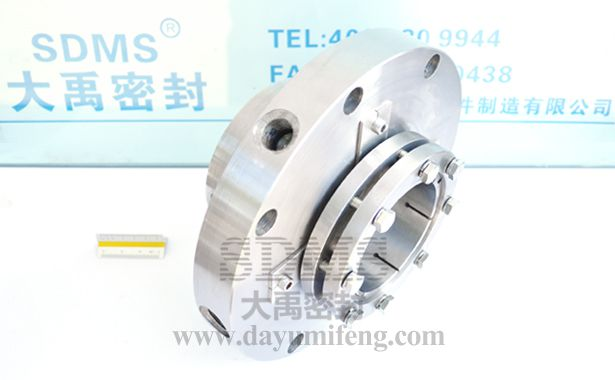

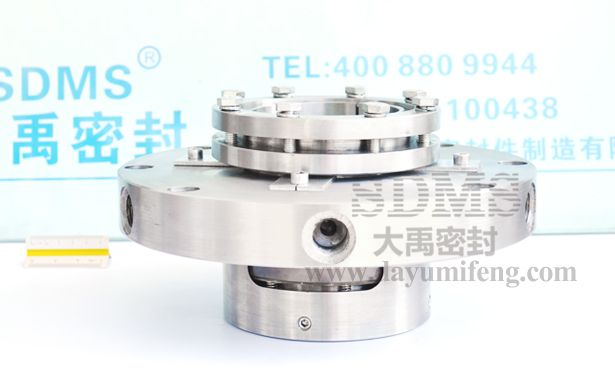

SLDG-90 seal for Shuanglun SLDG pump

Product Description:Single cartridge mechanical seal for Shandong Shuanglun SLZC pumps application.
Product Description











Sdms Seal Co., Ltd. is one of the largest mechchanical seals distributor ,seller, and repaire in China.We produce balanced single cartridge seal,balanced double cartridge seal, unbalanced single cartridge seal, unbalanced double cartridge seal, cartridge seal equipped with flush for process industry pumps,reactors,agitators,mixers,fermenters,filters and equipment revolving.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Aflas,AES,Sterling,Vulcan,Pac-Seal and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee. Our service is responsive, dependable and driven by your requirments.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: SLDG-90  Style: mechanical seals cartridge seals

Material
Sealing ring : SiC
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge mechanical seal for Shandong Shuanglun SLZC pumps application. The primary seal structure is Burgmann M7N series of mechanical seals, supporting the design of the sleeve, gland and transmission structure, the assembly became a cartridge mechanical seal. M7N series of simple mechanical seal structure, good sealing effect, but the process often requires the installation of an artificial adjustment, the mounting position is not as long or short in order to achieve the best possible seal. By supporting the design, the seal M7N adjusted to best fit assembled cartridge seal, simplifies the installation process. Wave Spring also attempts to prevent corrosion and prevention capability , it can provide a stable compensation force in a variety of corrosive environments, application conditions have also been expanded with a variety of optional materials base structure.

Recommended Applications Pumps and Rotating Equipment

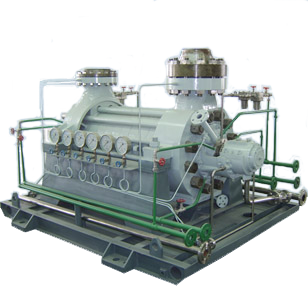

Shandong Shuanglun Co., Ltd.
ssc pump seal
SLDG boiler feed pump seal

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es una empresa de sellos mecanicos y cierres mecanicos de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos.Fabricamos sellos mecanicos cartuchos multimuelle, sellos mecanicos cartuchos fuelle, cierres para fuelle metálico, sellos de ballesta para bombeos, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

view:1286    lable:ssc pump china,mechanical seal china,boiler feed pump seal china,SLDG boiler feed pump seal,empresa sellos mecanicos china,empresa cierres mecanicos china,mechchanical seals distributor china,  Fine chemical  Pulp and paper industry  Fertilizer  Caustic soda industry  Circulating pump  Alkali pump  Pulp pump  Chemical standard pumps  Chemical pumps  Shandong Shuanglun Co., Ltd.
Application
Design features
Single cartridge seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1450 r/min
Shaft via:90 mm
