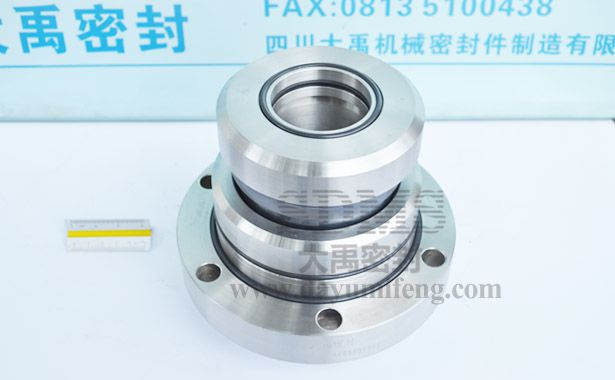

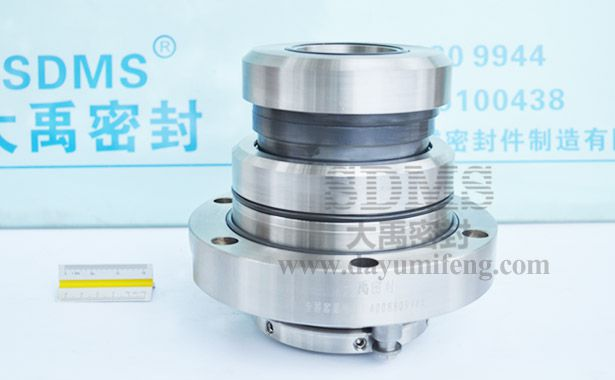

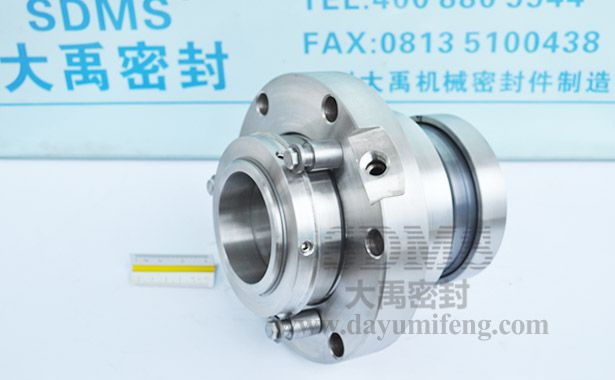

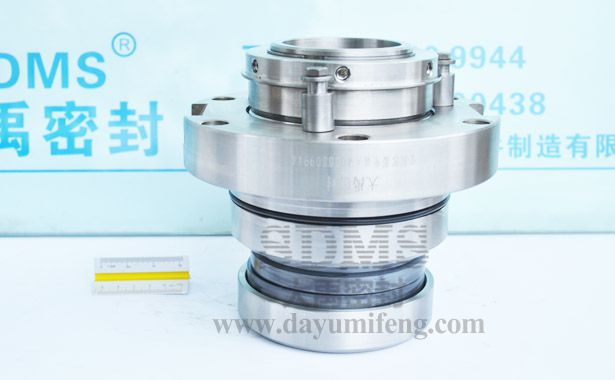

LH65D for LHZ series chemical pump seal

Product Description:Double cartridge mechanical seals for Xiangyang Wu Er Wu Pump LHZ series chemical axial flow pump application.
Product Description











Sdms Seal Co., Ltd. is one of the largest mechanical seals supplier,manufacturer and repaire in China.We produce balanced single cartridge seal,balanced cartridge double seal, unbalanced single cartridge seal, unbalanced double cartridge seal, single cartridge seal equipped with flush, double cartridge seal suited for heavy-duty, double cartridge seal equipped with flush for pumps,reactors,agitators,mixers,fermenters,hydraulic turbines  and centrifuges equipment revolving.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Aflas,AES,Sterling,Vulcan,Pac-Seal and Agualisa products.We also do repair and OEM mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: LH65D  Style: mechanical seals double cartridge seals

Material
Sealing ring : hard metal / SiC
Other metal parts : 2Cr13/304/316/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Double cartridge mechanical seals for Xiangyang Wu Er Wu Pump LHZ series chemical axial flow pump application.It first need to be turned circulating wash water before normal operation. Double mechanical seal structures, it can provide effective protection, especially suitable for sealing a strong corrosive, high temperature and toxicity characteristics of the medium. Double mechanical seals need to enough for high pressure for washing water, in general, the pressure of double mechanicalseals should be more higher the pressure of inside the sealed cavity, the relationship between the pressure difference, the sealing medium can be prevented from leaking into the cyclic space.When the flushing water pressure it is insufficient, or when the primary seal face it is down effect,the mechanical seal caused by leakage of trace amounts and the flush water also serves hazardous media was diluted with the flushing water circulates and flows. Since there is a second sealing surface to prevent leakage media and to protect the safety in production.

Recommended Applications Pumps and Rotating Equipment
Xiangyang Wu Er Wu Pump Industry Co.,Ltd

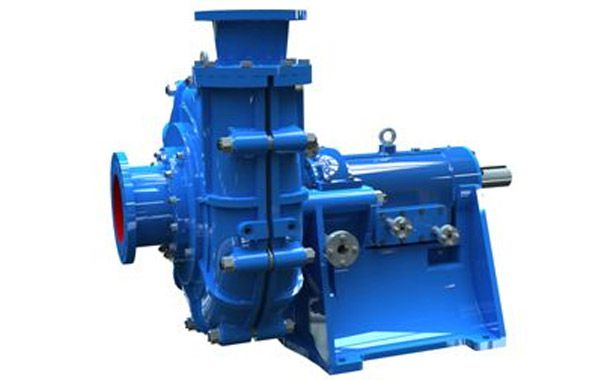

LHZ series chemical axial flow pump

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un proveedor complete de cierres mecánicos de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos.Fabricamos cierres mecánicos de resorte unico, cierres mecánicos de resortes multiples, cierres mecánicos de fuelle, cierres mecánicos de ballesta para bombeo, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

view:1099    lable:wu er wu pump seal,525 pumps seal,mechanical seal OEM,LH65D seal,LHZ chemical pump seal,LHZ axial flow pump seal, china mechanical seals,cartridge double seals,cierres mecánicos fabricación,mechanical seal suppliers,  Fine chemical  Salt making  Chemical industry  Caustic soda industry  Slurry pump  Phosphoric acid pump  Acid pump  Hydrochloric acid pump  Alkali pump  Chemical standard pumps  Chemical pumps  Xiangyang Wu Er Wu Pump Industry Co.,Ltd.
Application
Design features
Double cartridge seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±4
Parameters
Temperature:150 ℃
Pressure:1 Mpa
Rinse:External flushing circulation
Speed:1600 r/min
Shaft via:65 mm
Technical data
