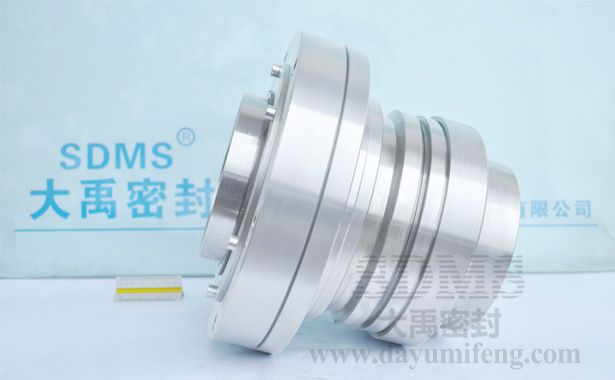

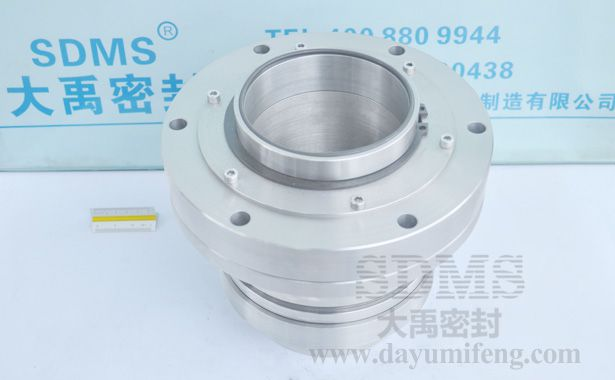

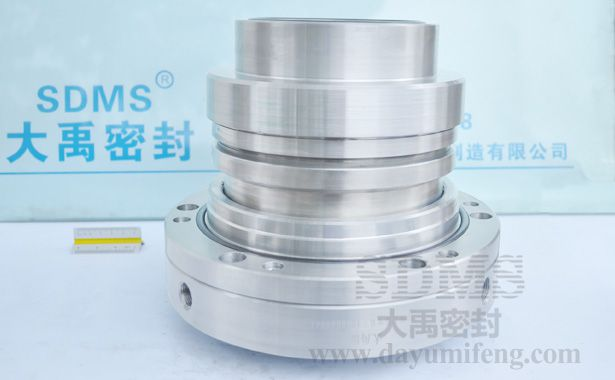

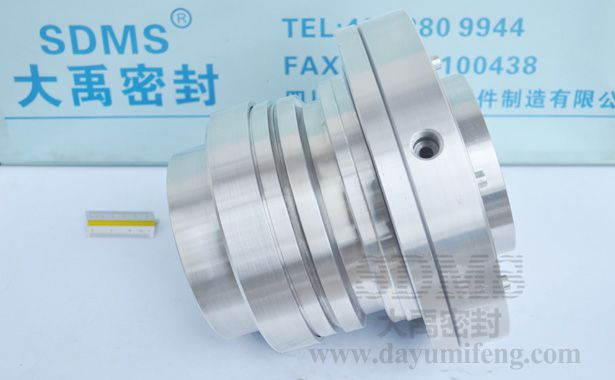

250ZJ-65S mechanical pump seal

Product Description:Single cartridge mechanical seals for Kunming Jiahe H, HH series slurry pump application.
Product Description









Sdms Seal Co., Ltd. is one of the largest cartridge seals suppliers, manufacturer and repaire in China.
We produce balanced single cartridge seal,balanced double cartridge seal, unbalanced single cartridge seal, unbalanced double cartridge seal, single cartridge seal equipped with flush, double cartridge seal suited for heavy-duty, double cartridge seal equipped with flush for water desalination,treatment, wastewater,pulp & paper,pipeline, pharmaceutical etc.
.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann, Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Aflas,AES, Vulcan,Pac-Seal and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: 250ZJ-65S  Style: mechanical seals cartridge seals

Material
Sealing ring : hard metal/SiC
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge mechanical seals for Kunming Jiahe H, HH series slurry pump application. Cartridge single face structure, installation position without the need of manual adjustments,the replacement is very convenient. During use, it must be connected to external water rinse cycle, otherwise there is the risk of being damaged.

Recommended Applications Pumps and Rotating Equipment
Shijiazhuang Kingda Pump Industry Group Co., Ltd
Shandong Shuanglun Co., Ltd.
Kingda Pump150ZGB(P),200ZGB(P),6S-H(P),6/4X-HH(P),8/6F-SH,8/6S(X)-H(P)

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un proveedor de sello mecanico completo de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos en China.Fabricamos sellos mecanicos de mono resorte, sellos mecanicos de multiresortes, sello mecanico de fuelle metálico, sellos mecanicos de ballesta, sellos cartuchos simples para bombas, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.


view:935    lable:kingda pump seal,mechanical pump seal, 200ZGB(P),6S-H(P),mechanical seal china,cartridge seals suppliers,proveedor sello mecanico china,  Pharmaceutical  Fertilizer  Chemical industry  Alumina industry  Slurry pump  Water / sewage water pumps  Chemical pumps  Mud pumps  Hebei Shibeng Technology Co.,Ltd.  Shandong Shuanglun Co., Ltd.
Application
Design features
Single cartridge seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1200 r/min
Shaft via:115 mm
Technical data
