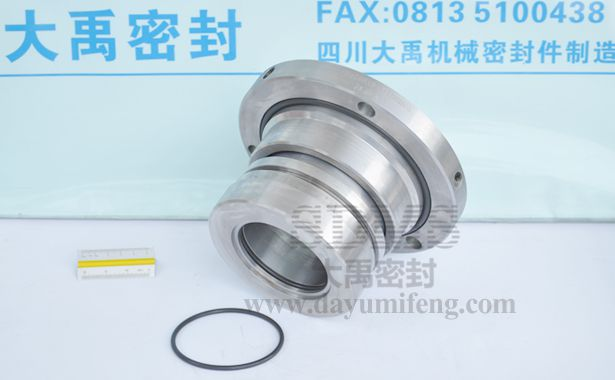

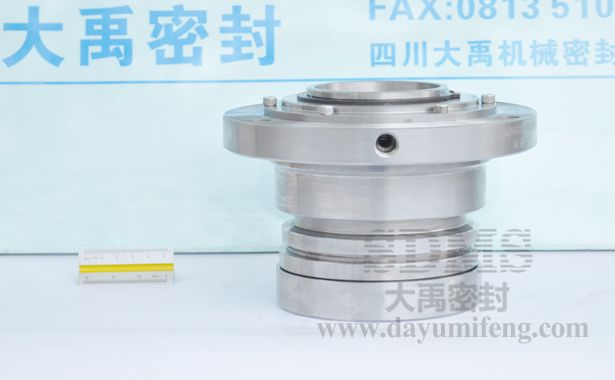

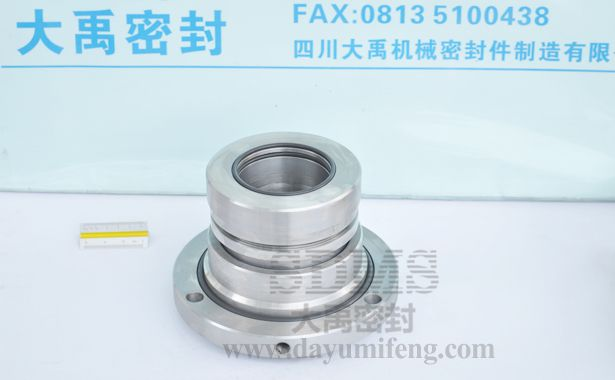

150ZJ-50DYS seal for desulfurization pumps

Product Description:Single cartridge mechanical seals for SGB pump ZJ series desulfurization pumps application.
Product Description









Sdms Seal Co., Ltd. is one of the largest mechanical seals exporting, distributor and repaire in China.We produce balanced cartridge seal,balanced double cartridge seal, unbalanced cartridge seal, unbalanced double cartridge seal, cartridge seal equipped with flush, double cartridge seal suited for heavy-duty, double cartridge seal equipped with flush,mixer seals,agitator seals, reactors seals for equipment revolving.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Aflas,AES,Sterling,Vulcan,Pac-Seal and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: 150ZJ-50DYS   Style: mechanical seals cartridge seals


Material
Sealing ring : hard metal
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge mechanical seals for SGB pump ZJ series desulfurization pumps application. Single seal structure, external flushing water style,the flushing water can provide lubricate and flush to sealing ring. When the compensation ring wear,the built in high spring force to provide timely compensation for the compensation ring and guarantee sealing performance.

Recommended Applications Pumps and Rotating Equipment
Shijiazhuang Industrial Pump Factory Co., Ltd.

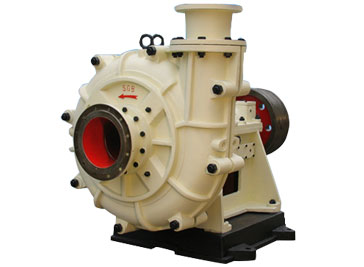

FGD Circle Pump,SGB pump,150ZJ-50 ,150ZJ-70,150ZJ-65,150ZJ-71,200ZJ-65,250ZJ-85

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un sello mecanico proveedor completo de dise?o, fabricación y reparacion de sistemas de sellos mecanicos.Fabricamos sellos mecanicos de resorte unico, sellos mecanicos de resortes multiples, sellos mecanicos de fuelle, sellos para fuelle metálico, sellos de ballesta par alas plantas petroquimicas, el bombeo de fluidos,bombas sumergibles,la bomba de lodo,mezcladores, reactores,agitadores y otro equipo rotativo. Fabricamos sellos mecanicos equivalents
 John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.


view:1109    lable: bomba lodo,150ZJ-50, 150ZJ-70 ,150ZJ-65 ,150ZJ-71, 200ZJ-65 ,250ZJ-85,mechanical seal,SGB pump,fgd pump seal,desulfurization pumps seal,  Power plant  Mining  Food and beverage industry  Coal chemical industry  Chemical industry  Slurry pump  Chemical pumps  Mud pumps  Shijiazhuang Industrial Pump Factory Co., Ltd.
Application
Design features
Single cartridge seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1500 r/min
Shaft via:75 mm
Technical data
