MHT150-125-400 for chemical pump seal

Product Description:Single cartridge mechanical seals for Keyoo pumps MHT series chemical pump application.
Product Description









Sdms Seal Co., Ltd. is a complete shaft seals supplier of design, manufacturing and repair of industrial shaft seals and control fluid in China.We produce and OEM mechanical shaft seals for sealing high-temperature, mechanical shafte seal for sealing high pressure fluids, welded metal bellows seals for power plant pumps, boiler feed pumps,boiler circulating pumps,mixers, reactors, agitator, slurry shaft seals,  oil shaft seals and other rotating shaft seals. Our supply replacement seals for AES, Ansi,Anga,John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Andritz, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Pac seal,Us seal, Sterling,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

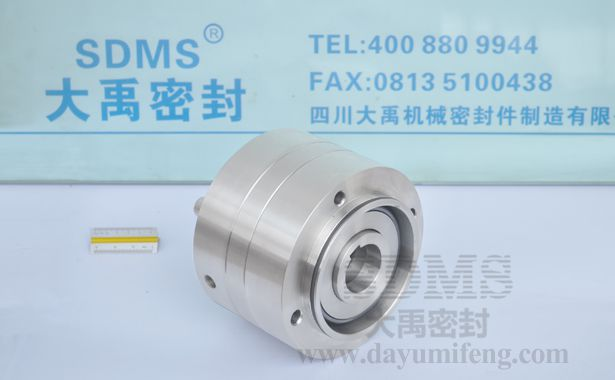

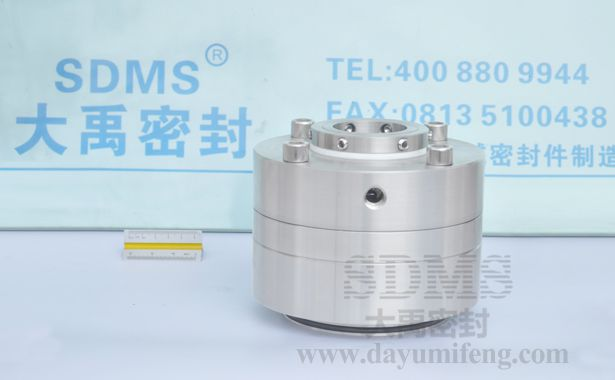

Model No.: MHT150-125-400    Style: mechanical seals cartridge

Material
Sealing ring : SiC
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge mechanical seals for Keyoo pumps MHT series chemical pump application. Single seal cartridge structure, installation simple and quick replacement, material selection varied, flushing water structure . Built in large springs and immersed in the washing water,it is not in direct contact with the media and provide a stable compensation force for a long time.

Recommended Applications Pumps and Rotating Equipment
Keyoo pumps seal
MHT series chemical pump seal

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es  el fabricante líder de dise?o, fabricación y reparacion de sello bomba en China. Fabricamos sello mecanico resorte ondulado, sellos mecanicos elastomericos,sellos mecanicos tradicionales, sello mecanico para fuelle metálico para bombas, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer, Ruhrpumpen  ,Flygt,Katrex,Aflas,AES, Gore, Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.


view:1394    lable:chemical pump seal,MHT chemical pump seal,mechanical seal china, mechanical seal manufacturing china,fabricante sello mecanico bomba china,supplier mechanical seal china,  Oil and gas industry  Mining  Caustic soda industry  Alumina industry  Slurry pump  Alkali pump  Keyoo pumps
Application
Design features
Single cartridge seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1500 r/min
Shaft via:50 mm
Technical data
