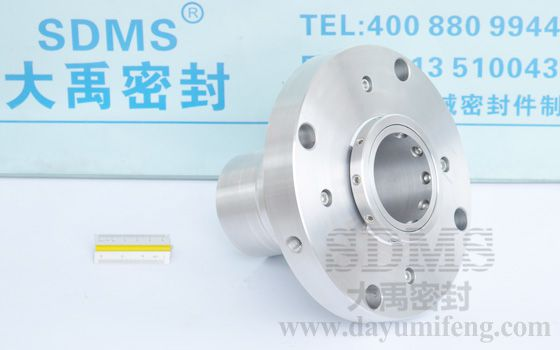

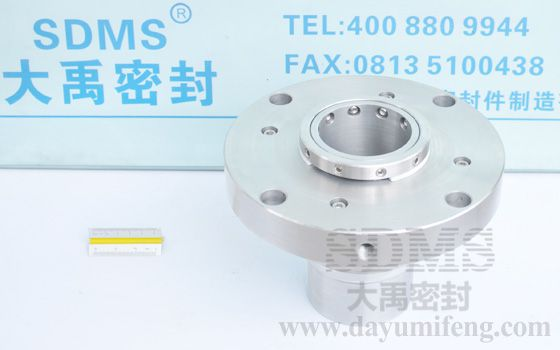

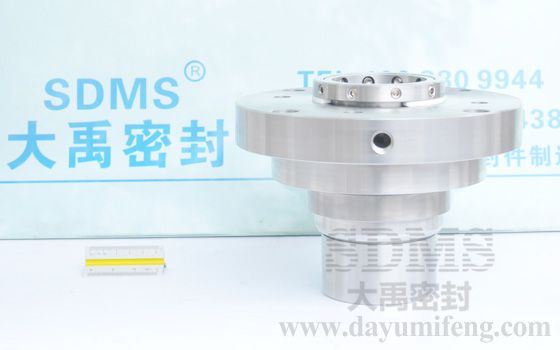

SDMS-LK5/68-SL seal for circulating pump

Product Description:Single cartridge mechanical seals for SSL single stage double suction centrifugal pump,SLJY slurry circulating pump of Shuanglun pumps application.
Product Description







Sdms Seal Co., Ltd. is one of the largest mechanical seals seller, manufacturer and repaire in China.We produce balanced single cartridge seal,balanced double cartridge seal, unbalanced single cartridge seal, unbalanced double cartridge seal, single cartridge seal equipped with flush, double cartridge seal suited for heavy-duty. We have rich experience in aseptic double catridge mechainical seal customized for hygienic applications.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Aflas,AES,Sterling,Vulcan,Pac-Seal and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee. Our service is responsive, dependable and driven by your requirments.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: SDMS-LK568-SL  Style: mechanical seals cartridge seals

Material
Sealing ring : hard metal
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge mechanical seals for SSL single stage double suction centrifugal pump,SLJY slurry circulating pump of Shuanglun pumps application.It doesnot need to manual adjustments mechanical seal position when it install. During use, it must be connected to external water rinse cycle, otherwise there is the risk of being damaged. Case of a single spring placed flush cycle space that is provided outside the loop flushing water,it can effectively prevent corrosion and clogging of the spring, and take away the heat generated by friction and sealing ring skeleton oil seal, lubricate simultaneously enhance the sealing life.

Recommended Applications Pumps and Rotating Equipment
Shandong Shuanglun Co., Ltd.
SSC pump
SSL single stage double suction centrifugal pump
SLJY slurry circulating pump

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un fabricante de sellos mecanicos y cierres mecanicos de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos.Fabricamos sellos mecanicos tipo resorte unico, sellos mecanicos tipo resortes multiples, sellos mecanicos tipo fuelle, sello mecanico para fuelle metálico, sellos mecanicos de ballesta para bombeos, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.













view:936    lable:ssc pump china,shuanglun pump seal,circulating pump seal,centrifugal pump seal,mechanical seal china,mechanical seals manufacturer china,mechanical seals hygienic,aseptic catridge seal, aseptic mechanical seal, fabricante sellos mecanicos,fabricacion sellos mecanicos,  Pharmaceutical  Fertilizer  Chemical industry  Slurry pump  Water / sewage water pumps  Chemical standard pumps  Chemical pumps  Mud pumps  Shandong Shuanglun Co., Ltd.
Application
Design features
Single cartridge seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:68 r/min
Shaft via:18000 mm
Technical data
