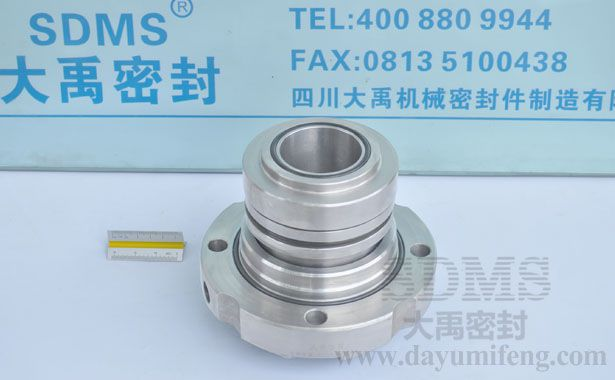

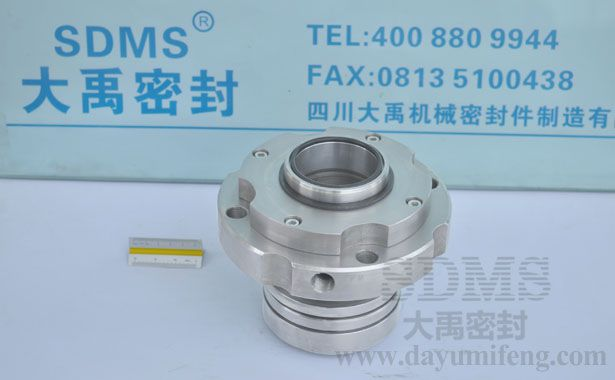

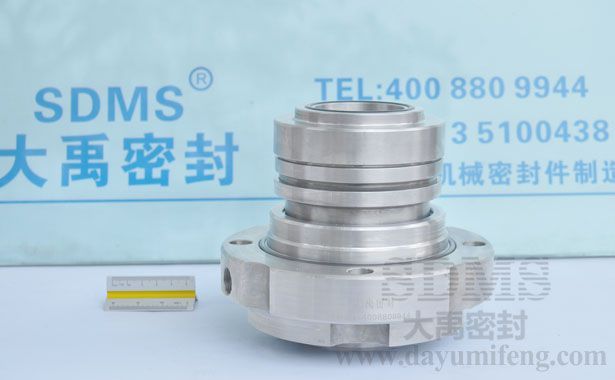

WZ-143/60 mechanical seal for mud pump

Product Description:Single cartridge mechanical seals for LRB aluminum industry process pump B4 series pump of Shandong Shuanglun application.
Product Description









Sdms Seal Co., Ltd. is a complete mechanical seals distributor of design, manufacture and repair of industrial sealing systems and control fluid. We offer products and services to a wide range of mechanical seal users international interchangeable with other manufacturers’ mechanical seals.We produce shaft seals, single shaft seals, double shaft seals, single spring mechanical seals, multiple spring mechanical seals,welded metal bellows seals, metal roller bellows seal for process industrial. Our supply replacement seals for AES, Ansi,Anga,John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Pac seal,Us seal, Sterling,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: WZ-14360    Style: cartridge mechanical seals

Material
Sealing ring : hard metal / SiC
Other metal parts : 2Cr13/304/316/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge mechanical seals for LRB aluminum industry process pump B4 series pump of Shandong Shuanglun application. It doesnot need to manual adjustments mechanical seal position when it install. During use, must be connected to external water rinse cycle for oil seal and seal rings provide lubrication and cooling effect, because this may cause friction heat and other mechanical seals gathered to be burned. Case of a single spring placed flush cycle space is provided outside the loop flushing water, can effectively prevent corrosion and clogging of the spring, and take away the heat generated by friction and sealing ring skeleton oil seal, lubricate simultaneously enhance the mechanical seal life.


Recommended Applications Pumps and Rotating Equipment
Shandong Shuanglun Co., Ltd.
SSC pump,4/6LRB43, 4/6LRB55, 4/6LRB70, 6/8LRB25, 6/8LRB34, 3/4LRB(I)75

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es  la manufactura líder de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos. Fabrica y venta de sellos mecanicos de resorte unico, cierres mecánicos de resortes multiples, sellos mecanicos de fuelle, cierres para fuelle metálico, sellos de ballesta para  quimicas y petroquimicas, generacion de energia,mineria,pulpa y papel y alimenticia.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas












view:1214    lable:ssc pump china,shuanglun pump seal, mechanical seal china, mud pump seal,mechanical seals distributor china,manufactura sello mecanico china, fabricacion sello mecanico china,  Fine chemical  Pharmaceutical  Fertilizer  Alumina industry  Slurry pump  Dredge pump  Water / sewage water pumps  Chemical standard pumps  Chemical pumps  Mud pumps  Shandong Shuanglun Co., Ltd.
Application
Design features
Double component seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1800 r/min
Shaft via:60 mm
Technical data
