LBJ-100 seal for feeding water pump

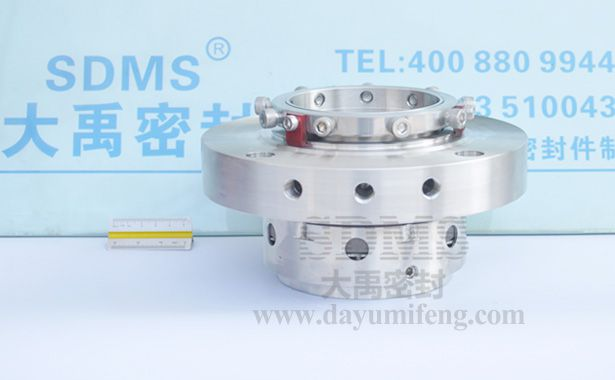

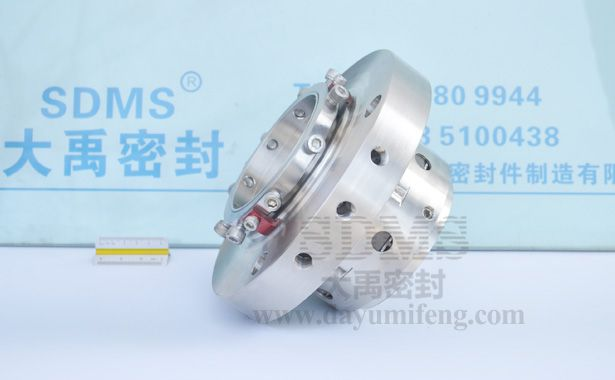

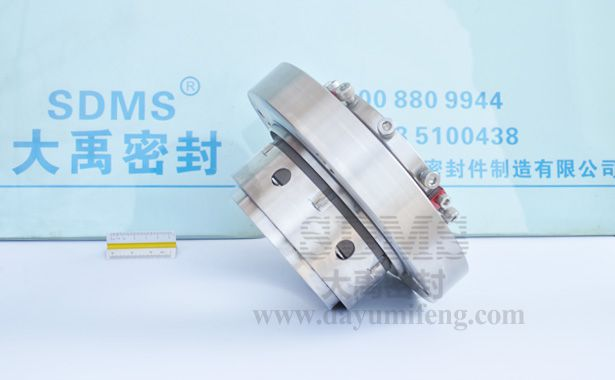

Product Description:Single cartridge mechanical seals for Powerchina Spem Company Limited application.
Product Description






Model number:  mechanical seal SDMSSEAL- LBJ-100

Style:     Cartridge mechanical seal
Place of origin:   Sichuan, China,products with much patents
Certification:  CE, API Q1,ISO ISO9001,QS
HS code of mechanical seals:  8484200090

Material
Sealing ring :  hard metal / SiC
Other metal parts :  2Cr13/304/316L
Auxiliary seal :  FPM/FKM/MVQ/NBR

Design features
Single cartridge mechanical seals for Powerchina Spem Company Limited application.It designed by cartridge mechanical seal assembled ZU2 products.The instllation structure changed component structure into cartridge structure, it is more easy and convenient. Cartridge seal structure without external flushing circulation,it is more durable.

Application factory
Powerchina Spem Company Limited

Application type
HZB253-640
DG series high pressure boiler feed water pump
FT series high pressure boiler feed water pump
FK series high pressure boiler feed water pump

Packaging Details:Standard export carton/Wooden Box or according to the requirement
Delivery Detail:Normally15-30 days, according to the quantity



view:1482    lable:LBJ-100,mechanical seal, feeding water pump,HZB253-640,  Pharmaceutical  Water and waste water technology  Salt making  Caustic soda industry  Slurry pump  Alkali pump  Water / sewage water pumps  Powerchina Spem Company Limited
Application
Design features
Single cartridge seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1400 r/min
Shaft via:100 mm
Technical data
