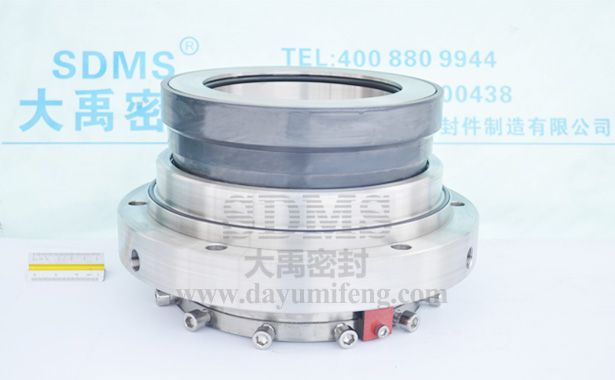

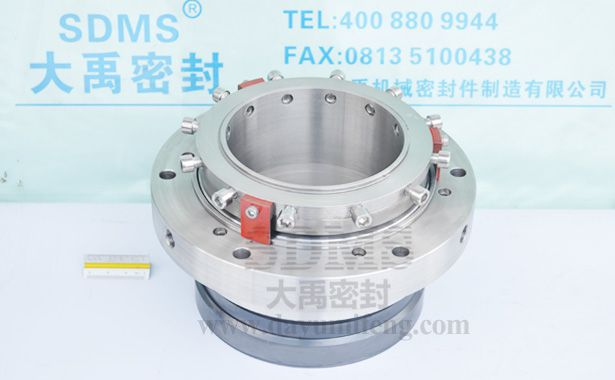

SDMS-JW600-220D for circulating pump

Product Description:Double component mechanical seals for JFZ horizontal abrasion resistant pumps and JFZ FGD circulating pump of Kunming Jiahe application.
Product Description









Sdms Seal Co., Ltd. is one of the largest double cartridge seals distributor,manufacturer and repaire in China.
We produce hightly qualified balanced single cartridge seal,balanced double cartridge seal, unbalanced single cartridge seal, unbalanced double cartridge seal, single cartridge seal equipped with flush, double cartridge seal suited for heavy-duty, double cartridge seal equipped with flush for water pumps,industrial pumps,centrifugal pump, mud pump, polypropylene pump etc.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann,Sharpe,Andritz,Ekato,Sulzer,Warman,Flygt, AES,Vulcan, and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: SDMS-JW600-220D  Style: mechanical seals cartridge seals

Material
Sealing ring : hard metal / SiC
Other metal parts : 2Cr13/304/316/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Double component mechanical seals for JFZ horizontal abrasion resistant pumps and JFZ FGD circulating pump of Kunming Jiahe application. It need to frist connect with external flushing circulation before use ,flushing circulation need to more higher pressure than the pressure of the sealed cavity. Double seal structure, sealing provides an added layer of protection, especially suitable the characteristics of the medium for sealing a strong corrosive, high temperature and toxicity.

Recommended Applications Pumps and Rotating Equipment
Kunming Jiahe Science & Technology Co.,Ltd.
JFZ horizontal corrosion abrasion resistant pump
JFZ flue gas desulfurization circulating pump

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un distribuidor de doble sello mecanico para bombas de agua.Fabricamos sellos mecanicos cartucho simple, cierres mecanicos cartucho simple, sellos mecanicos de fuelle, sellos mecanicos de fuelle metálico, sellos mecanicos de ballesta, sellos cartuchos simples, sellos dobles de cartucho para bombas horizontables, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.


view:1418    lable:jh pumps seals,Jiahe pump seal,desulfurization pump seal, circulating pump seal,JFZ corrosion pump seal, JFZ pump seal, double cartridge seals distributor, double cartridge seals manufacturer, doble sello mecanico,  Fine chemical  Salt making  Chemical industry  Slurry pump  Phosphoric acid pump  Acid pump  Hydrochloric acid pump  Alkali pump  Chemical standard pumps  Chemical pumps  Kunming Jiahe Science & Technology Co.,Ltd.
Application
Design features
Double cartridge seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:1 Mpa
Rinse:External flushing circulation
Speed:900 r/min
Shaft via:150 mm
Technical data
