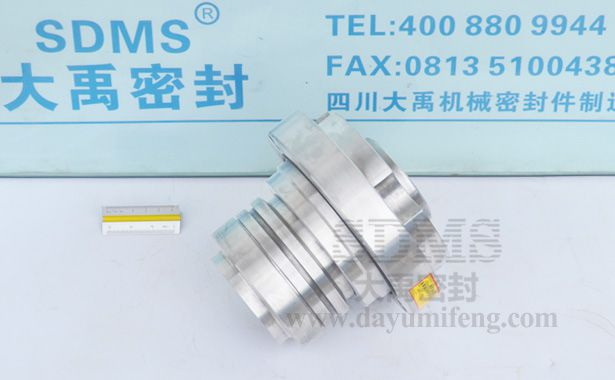

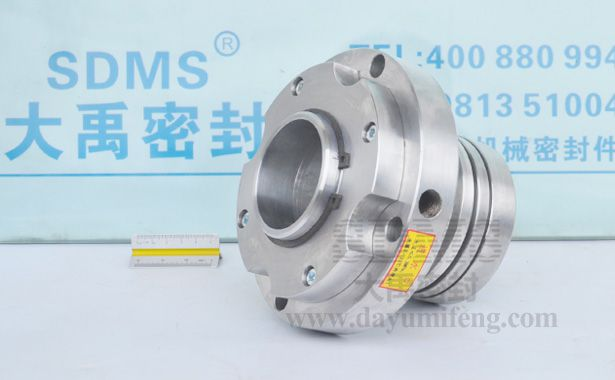

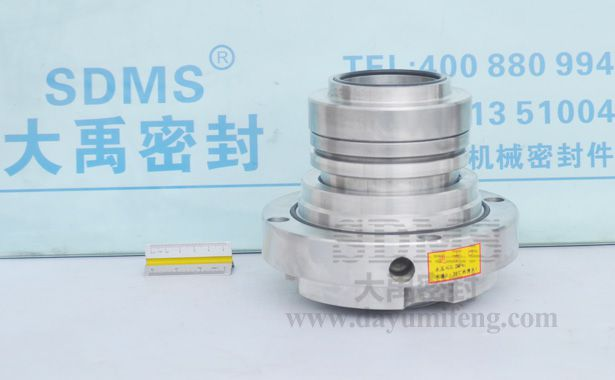

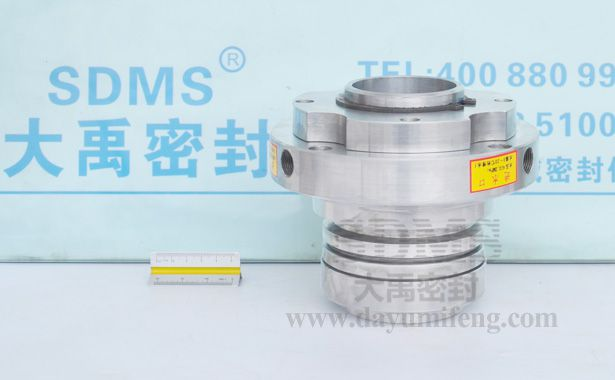

ZMWZ-90/65 seal for Kingda Pump

Product Description:Single cartridge mechanical seal for Hebei Shibeng Technology slurry pump application.
Product Description









Sdms Seal Co., Ltd. is a complete mech seals distributor of design, manufacture and repair of industrial sealing systems and control fluid. We offer products and services to a wide range of mechanical seal users international interchangeable with other manufacturers’ mechanical seals.We produce inch & metric sizes seals, single spring shaft seals, multiple spring component seals,outside seals, single spring mechanical seals, multiple spring mechanical seals,welded metal bellows seals, mechanical seal for process pumps ,dirty water and sea water,quarrying,coal gasification and coal mning. Our supply replacement seals for AES, Ansi,Anga,John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Pac seal,Us seal, Sterling,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: ZMWZ-9065   Style: mechanical seals double face component

Material
Sealing ring : hard metal
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge mechanical seal for Shijiazhuang Kingda Pump slurry pump application. It doesnot need to manual adjustments mechanical seal position when it was installed,so easy to install it. During use,it must be connected to external flushing circulation to provide lubrication and cooling effect to oil seal and seal rings,seal life has been further improved.

Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment
Shijiazhuang Kingda Pump Industry Group Co., Ltd.
Kingda Slurry Pump Company
65ZGB 3/2D-HH,4/3D-AH(R) 100D-L,6/4D-AH(R),6/4D(X)-G

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es el fabricante de cierres mecanicos líder de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos en China. Fabrica y venta de cierres mecanicos de nomoresortes, cierres mecanicos estandrizado, cierres mecanicos resorte conico, cierres mecanicos de fuelle metálico para bombas centrifugas, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,AES,Sterling entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno,PTFE y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas


view:891    lable:kingda pump seal,mechanical pump seal,65ZGB 3/2D-HH,mechanical seal china,process pumps seals,fabricante de cierre,  Pharmaceutical  Fertilizer  Chemical industry  Alumina industry  Slurry pump  Water / sewage water pumps  Chemical standard pumps  Chemical pumps  Mud pumps  Hebei Shibeng Technology Co.,Ltd.
Application
Design features
Single cartridge seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1600 r/min
Shaft via:65 mm
