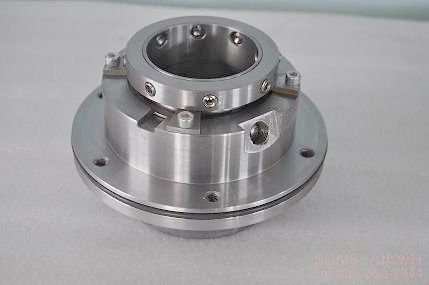

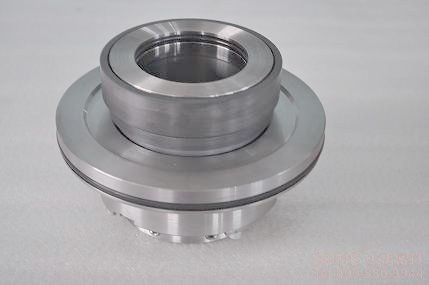

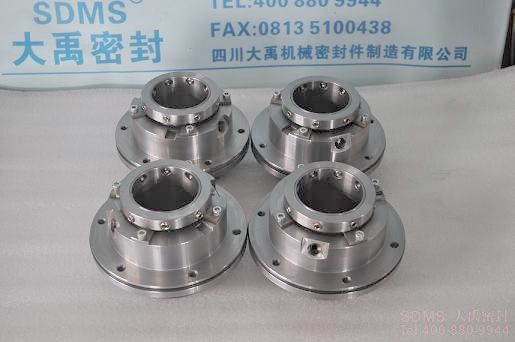

ZHJ-60 mechanical seal for slurry pump

Product Description:Single cartridge mechanical seal for Shijiazhuang Kingda Pump slurry pump,dredging pump application.
Product Description









Sdms Seal Co., Ltd. is one of the largest mechanical seals exporting, distributor and repaire in China.We produce single mechanical cartridge seal, double mechanical cartridge seal, unbalanced single cartridge seal, unbalanced double cartridge seal, single cartridge seal equipped with flush, double cartridge seal suited for heavy-duty, mine dewatering, waste water handling and equipment revolving.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane, Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB, Sulzer,Warman,Flygt,KatrexAES,Sterling,Vulcan,Pac-Seal and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: ZHJ-60  Style: mechanical seals cartridge seals

Material
Sealing ring : SiC
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge mechanical seal for Shijiazhuang Kingda Pump slurry pump,dredging pump application. Inner flushing structure, widely used in various media case with solid particles.Inner flushing structure also can be blocked option.External flushing circulation is base on rinse actual working conditions.

Recommended Applications Pumps and Rotating Equipment
Shijiazhuang Kingda Pump Industry Group Co., Ltd.
Kingda Slurry Pump Company
HS (R) slurry pump
WN type dredging pump

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un sello mecanico proveedor completo de dise?o, fabricación y reparacion de sistemas de sellos mecanicos.Fabricamos sellos mecanicos de resorte unico, sellos mecanicos de resortes multiples, sellos mecanicos de fuelle, sellos para fuelle metálico, sellos de ballesta para lama de bomba, bomba para barro ,las bombas de lodo,compresores, mezcladores, reactores,agitadores y otro equipo rotativo. Fabricamos sellos mecanicos equivalents
 John Crane,Eagle Burgmann, Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer, Flygt,Katrex, AES,Sterling entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.



view:1356    lable:kingda pump seal,mechanical pump seal,kingda slurry pump seal,HS (R) slurry pump seal, WN dredging pump seal,mechanical seal china,ZHJ-60, sello lama bomba, sello bomba barro,sello bomba lodo,  Oil and gas industry  Pulp and paper industry  Coal chemical industry  Alumina industry  Slurry pump  Alkali pump  Pulp pump  Chemical standard pumps  Chemical pumps  Hebei Shibeng Technology Co.,Ltd.
Application
Design features
Single cartridge seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:Inner flushing
Speed:1600 r/min
Shaft via:60 mm
Technical data
