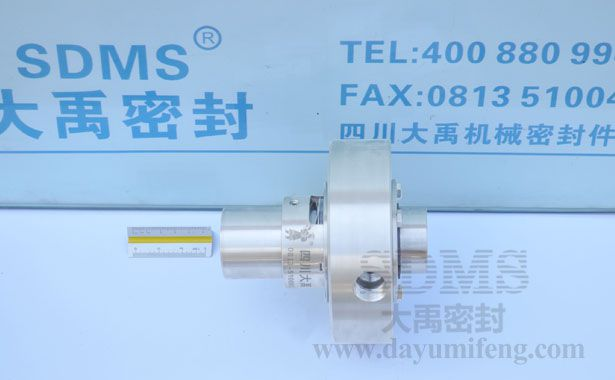

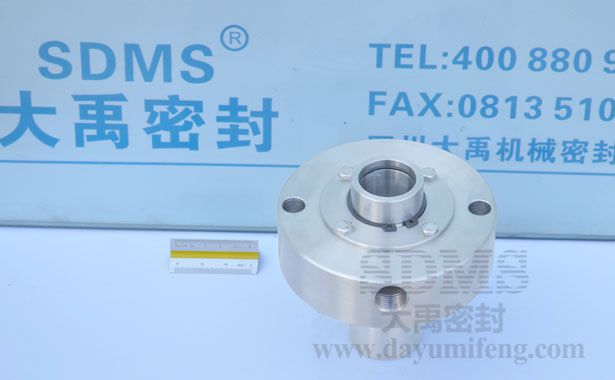

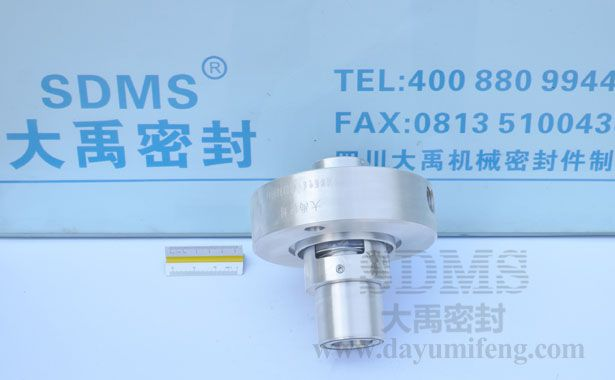

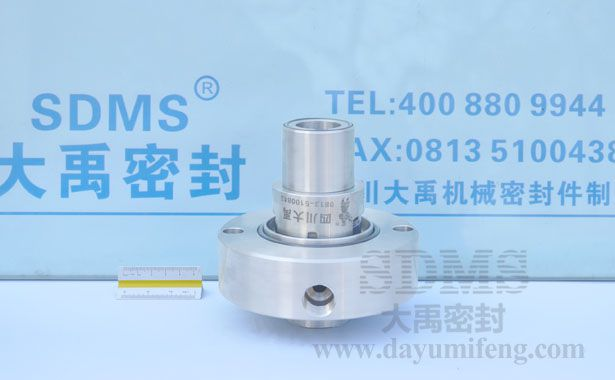

SDMS-LK40S01E-A seal for acid proof pump

Product Description:Single cartridge mechanical seals for standard seal of Dalian Acid Proof Pump Plant application.
Product Description









Sdms Seal Co., Ltd. is one of the largest seal exporting, manufacturer and repaire in China.
We produce balanced cartridge shaft seal, double cartridge shaft seal, unbalanced cartridge shaft seal, unbalanced double cartridge seal, single cartridge seal equipped with flush, double cartridge seal suited for heavy-duty, double cartridge seal equipped with flush for pumps,reactors,agitators,mixers,fermenters,filters and equipment revolving.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann, Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,AES,Sterling,Vulcan,Pac-Seal and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: SDMS-LK40S01E-A  Style: mechanical seals cartridge seals



Material
Sealing ring : SiC
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge mechanical seals for standard seal of Dalian Acid Proof Pump Plant application.Primary seal structure is Burgmann M7N series of mechanical seals. M7N series of mechanical wiht simple structure, good sealing effect, but the process of installation needs to size adjustment.We designed by reference to Burgmann M7N series of mechanical seals into cartridge structure ,it is more easy to install and more durable use life.

Recommended Applications Pumps and Rotating Equipment
Dalian No.2 Acid Proof Pump Plant

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un proveedor completo de sello mecanico de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos.Fabricamos sellos mecanicos de cartucho, cierres mecanicos de cartucho, sellos mecanicos de fuelle, sellos mecanicos de fuelle metálico, sellos mecanicos de ballesta, sellos cartuchos simples, sellos dobles de cartucho para bombas, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, ITT Flygt,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt, AES,Alfa Laval entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.













view:964    lable:Dalian No.2 Acid Proof Pump,chemical pump seal, pulp pump seal,acid proof pump seal,circulating pump seal,mechanical seal,cierre mecanico empresa,proveedor sello mecanico,  Pulp and paper industry  Fertilizer  Chemical industry  Circulating pump  Pulp pump  Chemical standard pumps  Chemical pumps  Dalian Acid Proof Pump Plant
Application
Design features
Single cartridge seal
Pusher
Bellows style spring
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:2400 r/min
Shaft via:35 mm
Technical data
