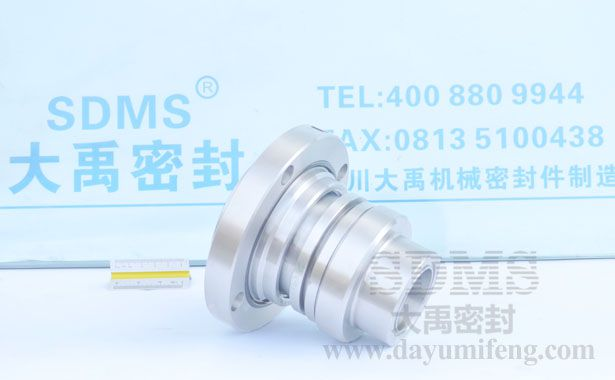

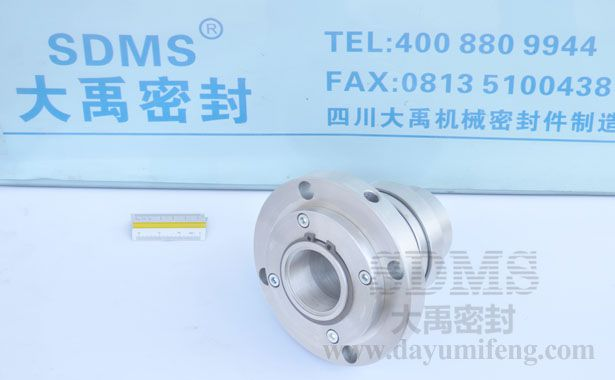

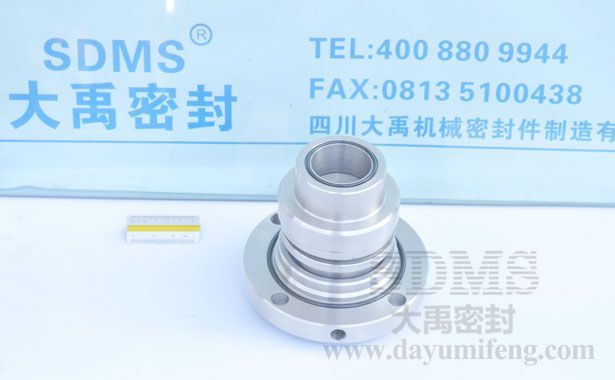

HZ-105/69.8 water and waste water pumps seals

Product Description:Single cartridge mechanical seals for Kingda Pump Industry slurry pumps ,water and waste water pumps application.
Product Description







Sdms Seal Co., Ltd. is one of the largest mech seals exporter, manufacturer and repaire in China.
We produce highest quality the widest range of standard mechanical seals, balanced single cartridge seal,balanced double cartridge seal, unbalanced single cartridge seal, unbalanced double cartridge seal, single cartridge seal equipped with flush, double cartridge seal suited for heavy-duty, double cartridge seal equipped with flush for industrial pumps,mine dewatering,waste water handing ,mildly abrasive industrial minerals and equipment revolving.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann, Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Aflas,AES, Vulcan,Pac-Seal and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: HZ-10569.8  Style: mechanical seals cartridge seals

Material
Sealing ring : hard metal
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge mechanical seal for Kingda Pump application. Large size spring structure can prevent corrosion resistant ability ,it is more advantages than small size spring adapt to size . Built in cooling circulation system. Installation simple and easy to replace. Sealing ring and the base structure to provide the variety material selection,it can adapt to all kinds of corrosive medium.

Recommended Applications Pumps and Rotating Equipment
Shijiazhuang Kingda Pump Industry Group Co., Ltd.
Kingda Slurry Pump Company
65ZGB(P) 4/3X-AH,3/2D(X)-HH,4/3D-AH 6/4D-AH,100D-L 80NG-40

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es una fabrica sello mecanico completo de dise?o, fabricación y reparacion de nivel internacional.Fabricamos cartuchos simples, cartuchos dobles, sello mecanico de fuelle, sello mecanico para fuelle metálico, sello mecanico de ballesta para bombas, sistemas de sellos, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Grundfos,ITT,KSB, Sulzer,Warman, Flygt, Aflas,AES, Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.













view:1401    lable:kingda pump seal,mechanical pump seal china,65ZGB(P),3/2D(X)-HH, 4/3D-AH , 100D-L 80NG-40,mechanical seal china ,cartuchos simples china, sello cartucho china,  Metallurgy  Pharmaceutical  Pulp and paper industry  Chemical industry  Slurry pump  Water / sewage water pumps  Chemical standard pumps  Chemical pumps  Mud pumps  Hebei Shibeng Technology Co.,Ltd.
Application
Design features
Single cartridge seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1600 r/min
Shaft via:69.8 mm
Technical data
