WZ166-85 water and sewage water pumps seals

Sdms Seal Co., Ltd. is a complete mechanical seals distributor of design, manufacture and repair of industrial sealing systems and control fluid. We offer products and services to very difficult medias: corrosive, clogging and crystallizing fluids.We produce industrial shaft seals, single shaft seals, double shaft seals, single spring mechanical seals, multiple spring mechanical seals,welded metal bellows seals, metal roller bellows seal for alumina processing pumps,weir minerals pump ,slurry pump applications. Our supply replacement seals for AES, Ansi,Anga,John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Pac seal,Us seal, Sterling,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

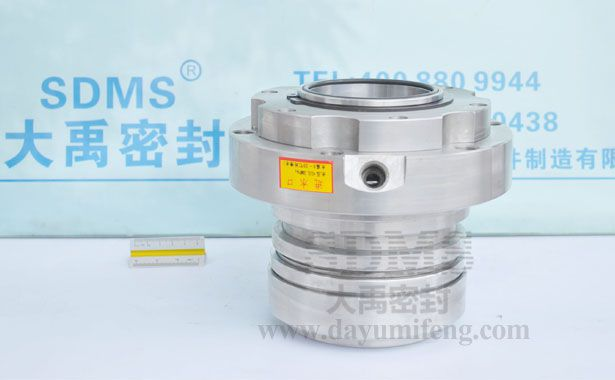

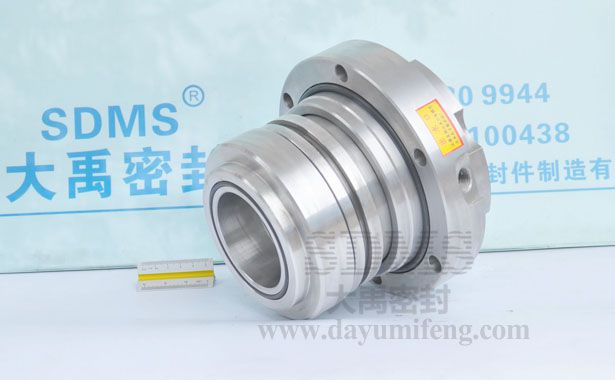

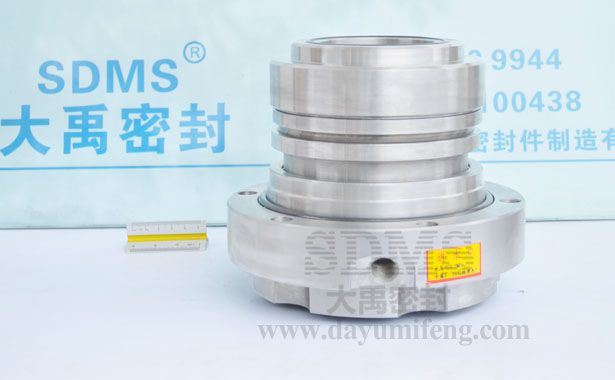

Model No.: WZ166-85    Style: cartridge mechanical seals

Material
Sealing ring : hard metal
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge mechanical seals for LRB aluminum industrial process B4 series pump,water and sewage water pumps of Shandong Shuanglun application. Cartridge single face structure.It doesnot need to manual adjustments mechanical seal position when it install. During use, must be connected to external water rinse cycle for oil seal and seal rings provide lubrication and cooling effect, because this may cause friction heat and other mechanical seals gathered to be burned.Single spring put inside washing circulation space .External flushing circulation structure,it can effectively prevent spring corroded and congestion and take away the heat generated by the sealing ring and skeleton oil seal, such as friction and lubrication effect at the same time, improve mechanical seal service life

Recommended Applications Pumps and Rotating Equipment
Shandong Shuanglun Co., Ltd.
SSC pump, 6/8LRB80, 6/8LRB80A, 8/10LRB49, 8/10LRB49A, 8/10LRB65, 8/10LBR65B, 10/12LRB36 10/12LRB36A

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es  la manufactura líder de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos. Fabrica y venta de sellos de cartucho multiples,sellos de cartucho doble, sellos mecanicos de fuelle, cierres mecanicos para fuelle metálico, sellos de ballesta para la mayoria de las aplicaciones de fluidos abrasivos,corrosivos que se cristalizan or solidifican en los procesos de las diferentes industrias.
Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas
