Home < Products < OKD65DT-A30

OKD65DT-A30 para lama de bomba

Product Description:Cartridge single mechanical seals for DT/ZJ series slurry pumps,mud pumps of Shijiazhuang industrial pump application.
Product Description









Sdms Seal Co., Ltd. is one of the largest mechanical seals exporting, distributor and repaire in China.We produce balanced single cartridge seal,balanced double cartridge seal, unbalanced single cartridge seal, unbalanced double cartridge seal, single cartridge seal equipped with flush, double cartridge seal suited for standard chemical pumps,gear pumps,vertical ammonia pump,centrifugal pump,rotary piston pump etc.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Aflas,AES,Sterling,Vulcan,Pac-Seal and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

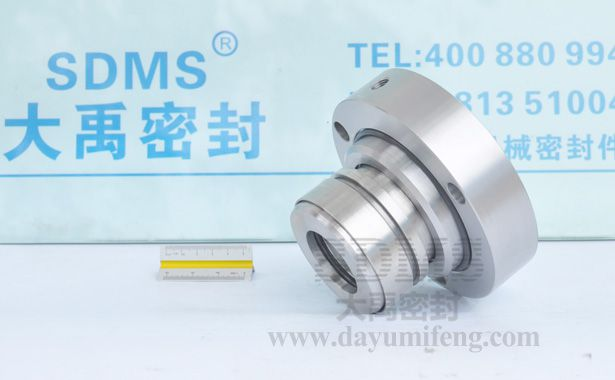

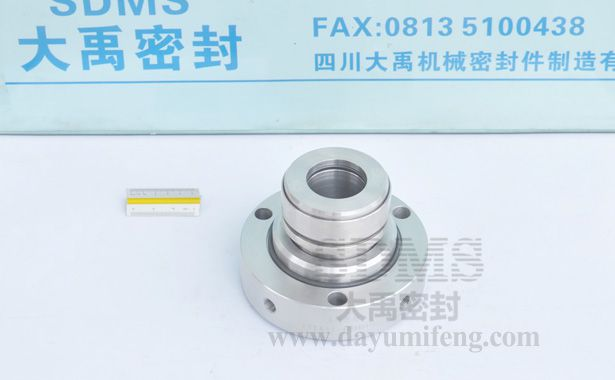

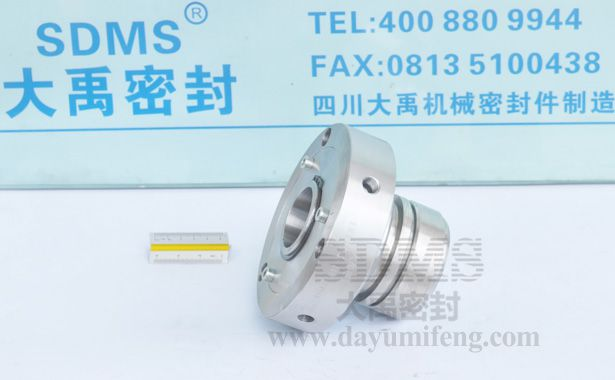

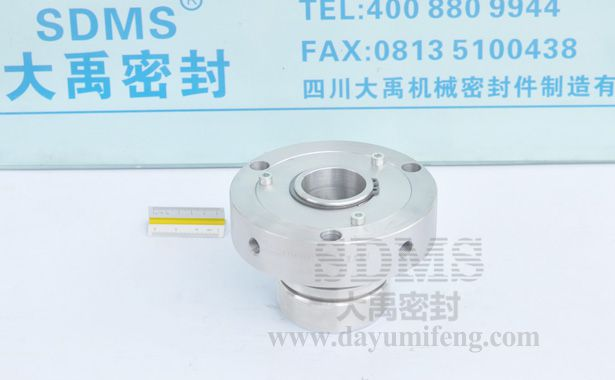

Model No.: OKD65DT-A30  Style: mechanical seals cartridge seals

Material
Sealing ring : hard metal / SiC
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Cartridge single mechanical seal for DT/ZJ series slurry pump,mud pump of Kingda Slurry Pump Company application. Cartridge structure,it does not need to manual adjustments mechanical seal position when it is installed.During use, it must be connected to external flushing circulation, otherwise there is the risk of being damaged.Single spring place inside washing circulation space,external flushing circulation structure,it can effectively prevent spring corroded and congestion and take away the heat generated by the sealing ring and skeleton oil seal, such as friction and lubrication effect at the same time, improve mechanical seal service life.

Recommended Applications Pumps and Rotating Equipment
Shijiazhuang Kingda Pump Industry Group Co., Ltd.
Shijiazhuang Industrial Pump Factory Co., Ltd.
Kingda Slurry Pump Company
SGB pump,65DT-A30,50ZJ-33,40DT-A17,50DT-D40,50DT-A30,40DT-A30

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un sello mecanico proveedor completo de dise?o, fabricación y reparacion de sistemas de sellos mecanicos.Fabricamos sellos mecanicos de resorte unico, sellos mecanicos de resortes multiples, sellos mecanicos de fuelle, sellos para fuelle metálico, sellos de ballesta para lama de bomba, bomba para barro,mineria,industria papelera,bombas de alimentacion de calderas y otro equipo rotativo. Fabricamos sellos mecanicos equivalents
 John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.


view:1436    lable:65DT-A30, 50ZJ-33 ,40DT-A17, 50DT-D40, 50DT-A30, 40DT-A30,mechanical seal,OKD65DT-A30,Kingda slurry pump company,,SGB pump seal, SGB bomba sello, sello mecanico proveedor,lama de bomba,  Fine chemical  Pharmaceutical  Fertilizer  Alumina industry  Slurry pump  Water / sewage water pumps  Chemical standard pumps  Chemical pumps  Hebei Shibeng Technology Co.,Ltd.  Shijiazhuang Industrial Pump Factory Co., Ltd.
Application
Design features
Single cartridge seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:2200 r/min
Shaft via:45 mm
Technical data
