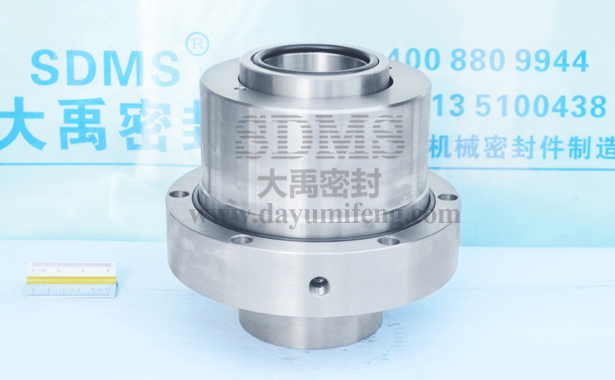

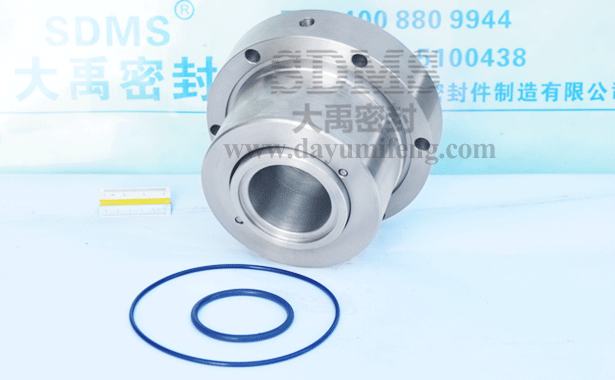

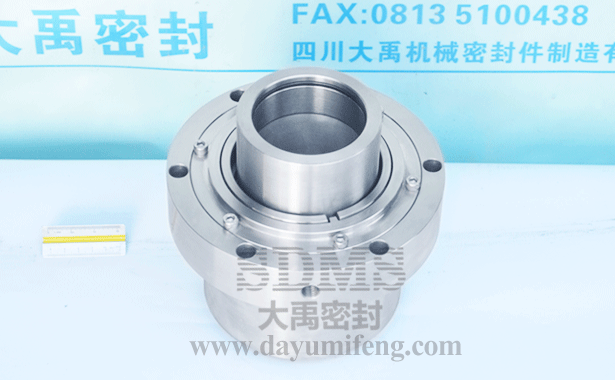

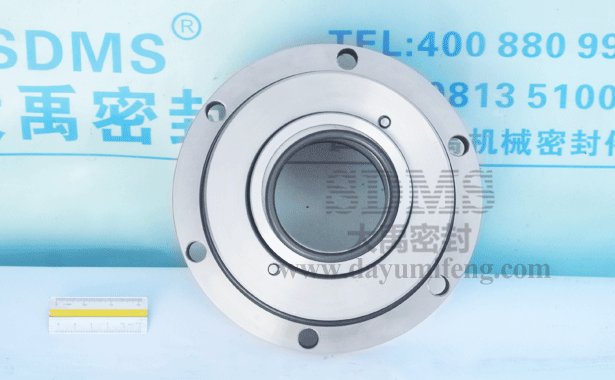

SE2-AP-75ZT seal for pulp pump

Product Description:Double cartridge seal for replacement Sulzer Management APP pumps application.
Product Description









Sdms Seal Co., Ltd. is a complete pump seals company of design, manufacture and repair of industrial sealing systems and local service.We produce inch & metric sizes seals, standard single seals, standard dual seal,bellows seals, rubber bellow seals for pumps, heavy duty industrial, high performance sealing and other equipment revolving. If your single spring mechanical seals, multi-spring mechanical seals, metal bellows fails our technical staff will help you get what you need as quickly as possible.Our supply replacement seals for AES, Ansi,Anga,John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Pac seal,Us seal, Sterling,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please feel free to contact us with any questions.

Model No.: SE2-AP-75ZT    Style: double face mechanical seals component

Material
Sealing ring : hard metal
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Mechanical seal for replacement Sulzer APP pumps and seawater pumps seals application. Component structure must support the corresponding pump installed in order to work properly. Carbide seal ring, wear resistance, corrosion resistance, high hardness, to adapt to a variety of corrosive media and particulate matter. Corrosive metal structure according to different media, offers a variety of corrosion-resistant alloy choose to use, reasonably equipped with auxiliary sealing material, normal operation to guarantee the optimum configuration of mechanical seals.

Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment
Sulzer Management Ltd
APP pumps

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es la mayorista líder de sello mecanico calidad superior de sellado bombas industrial petroquimica y control de fluidos.Fabricamos sello mecanico multiresorte, sello mecanico monoresorte, sello mecanicos conexion para lavado, sello mecanico con fuelle elastomerico, sellos de ballesta para APP bombeos y equipos para fluidos.Las marcas de sellos que reponemos y reemplazamos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas


view:1372    lable:SE2-AP-75ZT, pulp pump seal,oil pump seal,replace sulzer APP pumps seal,reemplazar sello APP bombas, reemplazar sello APP bombeos,replacement sulzer pump seal,sulzer bomba sello,  Oil and gas industry  Fine chemical  Pharmaceutical  Pulp and paper industry  Pulp pump  Chemical standard pumps  Chemical pumps  Oil pump  Sulzer
Application
Design features
Double cartridge seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1600 r/min
Shaft via:75 mm
