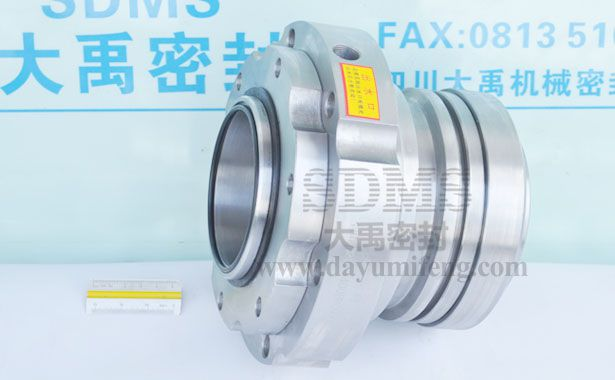

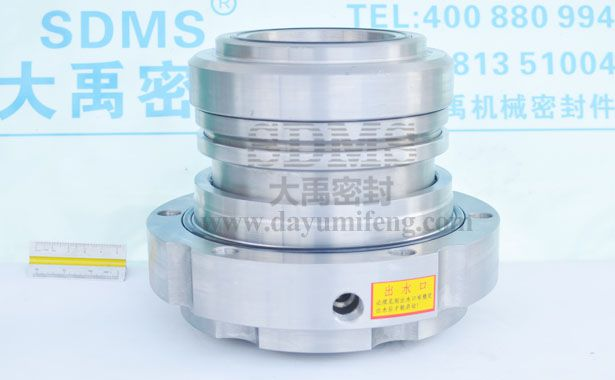

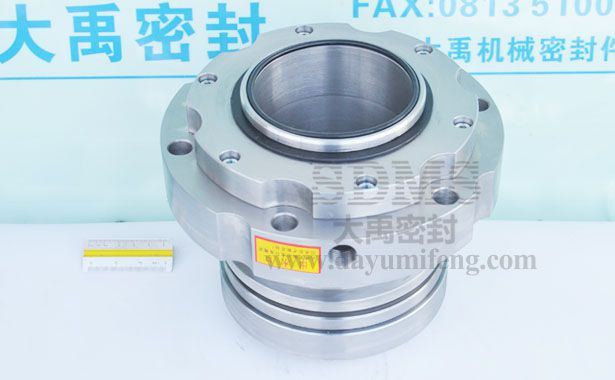

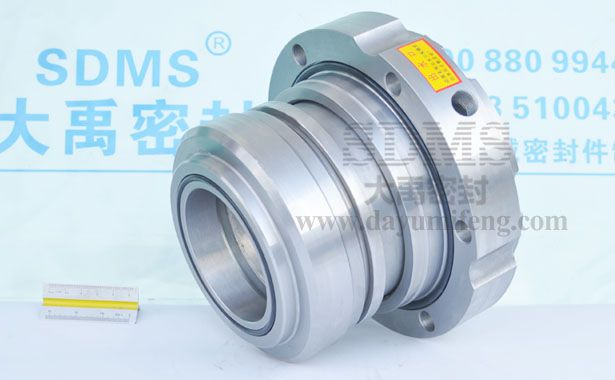

ZMWZ-169/95 integrated mechanical seals

Product Description:Single integrated mechanical seals for LRB aluminum industry process pump B1 series pump of Shandong Shuanglun application.
Product Description








Sdms Seal Co., Ltd. is a complete mechanical seals distributor of design, manufacturing and repair of industrial sealing systems and control fluid. We offer products and services to very difficult medias: corrosive, clogging and crystallizing fluids.We produce cartridge shaft seals, single shaft seals, double shaft seals, single spring mechanical seals, multiple spring mechanical seals,welded metal bellows seals, metal roller bellows seal for alumina processing pumps,weir minerals pump ,slurry pump applications. Our supply replacement seals for AES, Ansi,Anga,John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Pac seal,Us seal, Sterling,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: ZMWZ-16995    Style: cartridge mechanical seals

Material
Sealing ring : hard metal / SiC
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single integrated mechanical seals for LRB aluminum industry process pump B1 series pump of Shandong Shuanglun application.It doesnot need to manual adjustments mechanical seal position to install. During use,it must be connected to external flushing circulation for oil seal and seal rings provide lubrication and cooling effect, because this may cause friction heat and other mechanical seals gathered to be burned. Case of a single spring placed flush cycle space is provided outside the loop flushing water, can effectively prevent corrosion and clogging of the spring, and take away the heat generated by friction and sealing ring skeleton oil seal, lubricate simultaneously enhance the mechanical seal life.

Recommended Applications Pumps and Rotating Equipment
Shandong Shuanglun Co., Ltd.
SSC pump, 8/10LRB8510/12LRB52,10/12LRB70, LRB25-90,LRB320-90(K),8/10LRB85A(B),10/12LRB70A(B),LRB320-100(K)


Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es  la manufactura large experiencia de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos. Fabrica y venta de  sello de cartucho mecanico sencillo, sellos de cartucho doble, sellos mecanicos de fuelle, cierres mecanicos para fuelle metálico, sellos de ballesta para las bombas de lodo en los procesos de las mineras industrias.
Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas


view:1653    lable:ssc pump seal,shuanglun pump seal,integrated mechanical seals china,10/12LRB70, LRB25-90, LRB320-90(K), mechanical seal china,mechanical seals manufacturing china, sello mecanico bombas lodo,sello mecanico lado,  Pharmaceutical  Fertilizer  Chemical industry  Alumina industry  Slurry pump  Water / sewage water pumps  Chemical standard pumps  Chemical pumps  Mud pumps  Shandong Shuanglun Co., Ltd.
Application
Design features
Single cartridge seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1450 r/min
Shaft via:95 mm
Technical data
