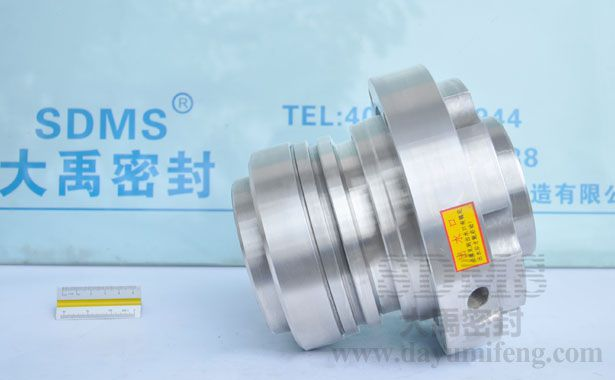

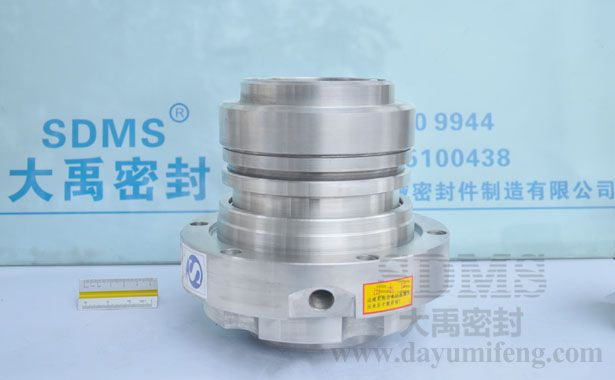

ZWJ-100 for ZGB Slurry Pump

Product Description:Single cartridge mechanical seals for Shijiazhuang Kingda Pump Industry Group Co., Ltd.ZGB Slurry Pump application.
Product Description







Sdms Seal Co., Ltd. is one of the largest cartridge seals distributor,manufacturer and repaire in China.
We produce balanced cartridge seal, unbalanced cartridge seal, double cartridge seal, , single cartridge seal equipped with flush, double cartridge seal suited for heavy-duty, double cartridge seal equipped with flush for magnetic couplings ,compressor seals,agitator seals,pump seals etc.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB, Sulzer,Warman,Flygt, AES, and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: ZWJ-100  Style: mechanical seals cartridge seals

Material
Sealing ring : hard metal / SiC
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge mechanical seals for Shijiazhuang Kingda Pump Industry Group Co., Ltd slurry pump application. Cartridge type structure, installation is simple and convenient.ZWJ series seal without flushing water structure,the shaft diameter range 45mm, 60mm, 80mm, 100mm, 130mm, 150mm, 170mm. For security reasons, does not usually used in some dangerous, poisonous medium.In order to improve the service life,multiple springs is not in contact with the media in the air environment, to reduce the influence of corrosion on spring.

Recommended Applications Pumps and Rotating Equipment
Shijiazhuang Kingda Pump Industry Group Co., Ltd
Kingda Slurry Pump Company
10/8E(R)-M 100ZGB,150E-L 300ZGB,14/12ST(X)-AH,300S-L 12/10G-GH,250PN 150ZGB,8/6S(X)H

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un distribuidor de sello mecanico para bombas industriales en China.Fabricamos sellos mecanicos cartucho, cierres mecanicos cartucho, sellos mecanicos de fuelle, sellos mecanicos de fuelle metálico, sellos mecanicos de ballesta, sellos cartuchos simples, sellos dobles de cartucho para bombeos, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT, Lightnin,Sulzer, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.













view:1441    lable:kingda pump seal,mechanical pump seal china, 100ZGB,150ZGB 8/6S(X)H,Shijiazhuang Kingda Pump Industry Group Co., Ltd,cartridge seals distributor china,cartridge seals manufacturer china,distribuidor sello mecanico,  Fine chemical  Pharmaceutical  Fertilizer  Alumina industry  Slurry pump  Mud pumps  Hebei Shibeng Technology Co.,Ltd.
Application
Design features
Single cartridge seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±1
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:Without flushing water
Speed:1300 r/min
Shaft via:100 mm
Technical data
