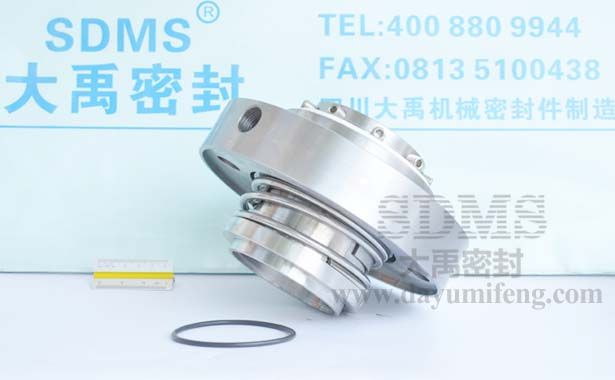

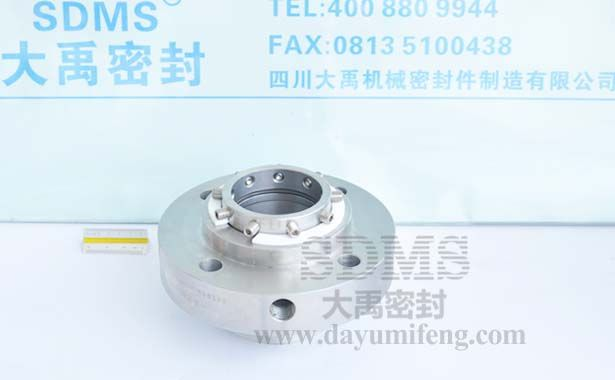

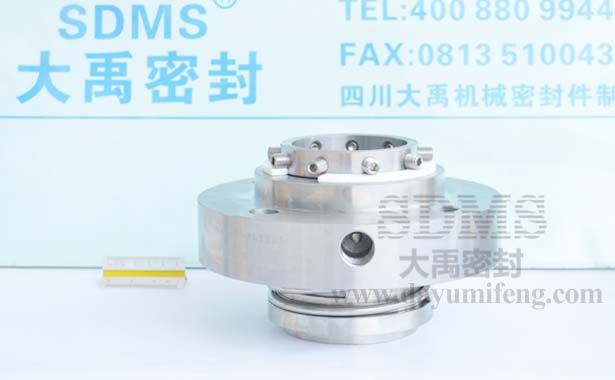

150AY-150BXZ seal for replacement Sulzer pumps

Product Description:Single cartridge seal for oil pump series of Dalian Acid Proof Pump seal Plant application.
Product Description









Sdms Seal Co., Ltd. is a complete pump seals factory of design, manufacture and repair of industrial sealing systems and control fluid.We produce inch & metric sizes mechanical seals, double face seals, single face seal,welded metal bellows seals, rubber bellow seals for pumps, screens,vessels,mixers, reactors, agitator and other equipment revolving. If your single spring mechanical seals, multi-spring mechanical seals, metal bellows fails our technical staff will help you get what you need as quickly as possible.Our supply replacement seals for AES, Ansi,Anga,John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Pac seal,Us seal, Sterling,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please feel free to contact us with any questions.

Model No.: 150AY-150BXZ    Style: mechanical seals cartridge

Material
Sealing ring : hard metal
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge seal for oil pump series of Dalian Acid Proof Pump Plant application. Big spring structure,it is more better than small spring in the side of installation dimension error and has a good ability of anti corrosion and defend.Inner flushing structure improve the stability of the seal.

Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment
Danai Pumps Co., Ltd
Sulzer Management Ltd
150AY150*2,200AY150*2,250AYS150,250AYS*2,100AY120*2,250AYS80

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es la mayorista líder de sello mecanico calidad superior de sellado bombeo industrial y control de fluidos.Fabricamos sello mecanico no equilibrado, sello mecanico equilibrado, sello mecanico de fuelle, sello mecanico multimuelle, sello mecanico con fluido barrera para bombas industrials y equipos para fluidos.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas


view:1413    lable:150AY150*2,250AYS150,250AYS*2,250AYS80, replacement sulzer mechanical seals,oil pumps seals,Sulzer pumps seal, replacement Sulzer seals,Sulzer bomba sello,sulzer bombeo sello,sello mecanico mayorista,pump seals factory,  Oil and gas industry  Fine chemical  Water conservancy  Water / sewage water pumps  Chemical standard pumps  Chemical pumps  Oil pump  Sulzer  Dalian Acid Proof Pump Plant
Application
Design features
Single cartridge seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:Inner flushing
Speed:1500 r/min
Shaft via:80 mm
Technical data
