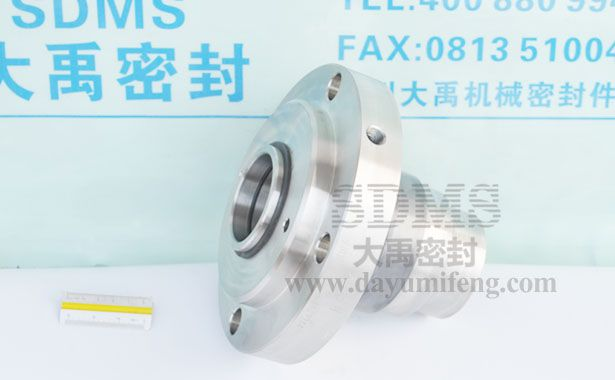

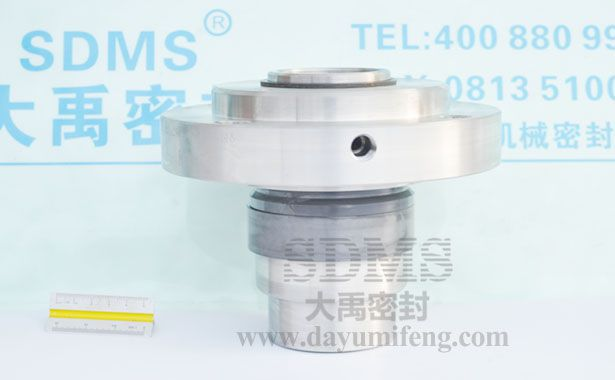

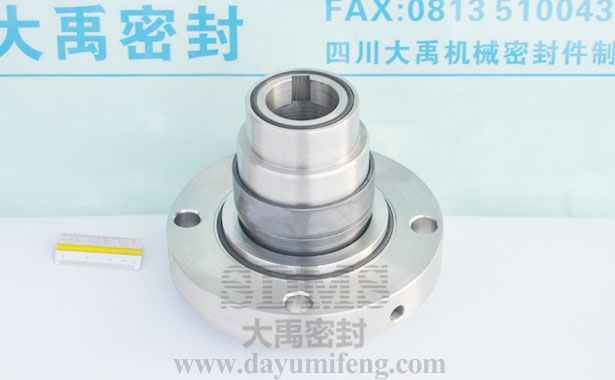

SDMS-JFZ-LK4-P02 seal for mud pump

Product Description:Single cartridge mechanical seals for JFZ series flue gas desulfurization circulating pump of Kunming Jiahe Pump application.
Product Description









Sdms Seal Co., Ltd. is one of the largest mechanical seals suppliers, manufacturer and repaire for flue gas desulfurization circulating pump in China.We produce fiberglass single cartridge seal,fiberglass double cartridge seal, unbalanced single cartridge seal, unbalanced double cartridge seal, single cartridge seal equipped with flush, double cartridge seal equipped with flush for pumps corrosion resistant,reactors,agitators,mixers,fermenters,filters and equipment revolving.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB, Sulzer,Warman,Flygt,AES,Sterling,Vulcan,Pac-Seal and Agualisa products. We also do repair all brands of mechanical seal quickly and guarantee,not just our own. We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us today to find out how we can add value to your business.


Model No.: SDMS-JFZ-LK4-P02  Style: mechanical seals cartridge fiberglass seals

Material
Sealing ring : SiC
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge mechanical seals for JFZ series flue gas desulfurization circulating pump of Kunming Jiahe Pump application. Sealing ring is silicon carbide integrated,it has characteristics of the high hardness,good stability,high thermal conductivity,but the pump should be relatively stable,otherwise the pump may cause the damage of the sealing ring.Mechanical seal uses the keyway transmission structure,it is more stable than the clamping type transmission and does have damage to pump shaft.

Recommended Applications Pumps and Rotating Equipment
Kunming Jiahe Science & Technology Co.,Ltd.
Jh pumps seals,
JFZ series flue gas desulfurization circulating pump

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un distribuidor de sello mecanico completo de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos.Fabricamos sello mecanico de resorte unico, sello mecanico de resortes multiples, sello mecanico de fuelle, cierres para fuelle metálico, sellos de ballesta para bomba de fibra de vidrio, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt, AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.


view:1246    lable:jh pumps seals,Jiahe pump seal,JFZ flue gas desulfurization circulating pump seal,fabricacion sello mecanico,suppliers desulfurization circulating pump seal, manufacturer desulfurization circulating pump,  Metallurgy  Nuclear power  Pulp and paper industry  Petrochemical  Circulating pump  Chemical pumps  Desulphurization pump  Drainage pumps  Slurry pump,Mud pumps  Kunming Jiahe Science & Technology Co.,Ltd.
Application
Design features
Single cartridge seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1800 r/min
Shaft via:58 mm
