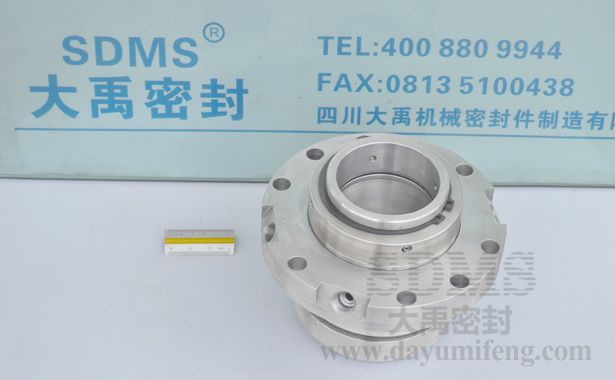

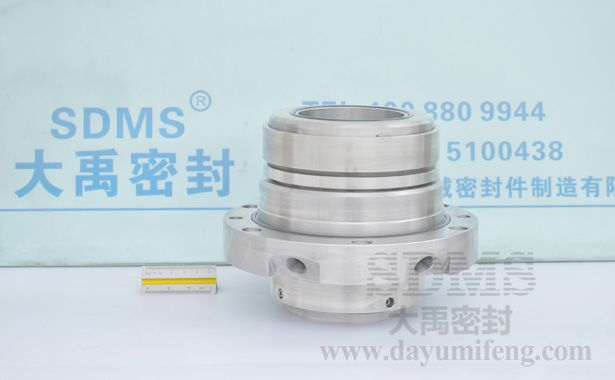

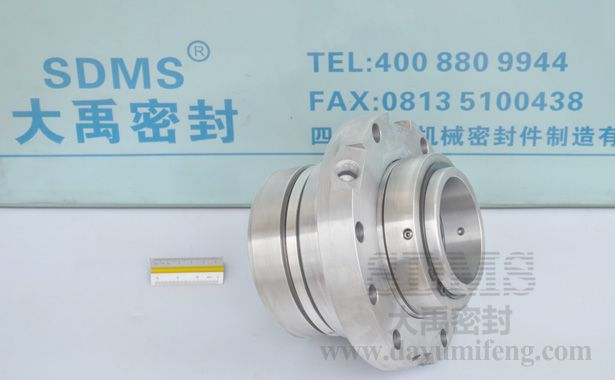

BB-80D seal for dredge pump

Product Description:Double cartridge mechanical for LZ series slurry pump of Seaflow pump application.
Product Description









Model number:  mechanical seals SDMSSEAL- BB-80D

Style:     Cartridge mechanical seals
Place of origin:   Sichuan, China,products with patents
Certification:  CE, API Q1,ISO ISO9001,QS
HS code of mechanical seals:  8484200090

Material
Sealing ring :  hard metal
Other metal parts :  2Cr13/304/316L
Auxiliary seal :  FPM/FKM/MVQ/NBR

Design features
Double cartridge mechanical for LZ series slurry pump of Seaflow pump application. LZ series slurry pump can use three kinds of seals structure respectively single cartridge without flushing waterstructure, single cartridge with external flushing circulation and double cartridge .This product is double cartridge seals with external flushing circulation.The gland of mechanical seal machined  4 or 6 screw bore hole to ensure successfully installed.

Application factory
Seaflow pump

Application type
LZ series slurry pump
100 lz475 lz - 700-125
Lz - 350 150 150 lz - 150
Lz - 420 150 150 lz - 150

Packaging Details:Standard export carton/Wooden Box or according to the requirement
Delivery Detail:Normally15-30 days, according to the quantity

We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives




view:1136    lable:BB-80D seal,multistage pump seal,dredge pump seal, heavy pump seal ,process pump seal,mechanical seals,  Alumina industry  Chemical industry  Coal chemical industry  Food and beverage industry  Salt making  Corrosive medium pump  Dredging pumps,Dredge pump  Heavy pump  Multistage pump  Process pumps  Seaflow pump
Application
Design features
Double cartridge seal
Pusher
Multiple springs
Independent of direction of rotation
Admissible axial movement ±3
Parameters
Temperature:150 ℃
Pressure:1 Mpa
Rinse:External flushing circulation
Speed:1500 r/min
Shaft via:80 mm
Technical data
