SLZC200-760 for chemical standard pumps seals

Product Description:Single cartridge mechanical seals for SLZC series pump and chemical standard pumps seals of Shandong Shuanglun Co., Ltd.application.
Product Description











Sdms Seal Co., Ltd. is a complete mechanical seals manufacture of design, engineering and repair of industrial sealing systems and control fluid. We offer products and services to very difficult medias: corrosive, clogging and crystallizing fluids.We produce pump seals, wave spring seals, single spring seals, multiple spring seals,welded metal bellows seals, metal roller bellows seal for use in all types of rotating equipment centrifugal pumps,mixers and agitators. Our supply replacement seals for AES, Ansi,Anga,John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Pac seal,Us seal, Sterling,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

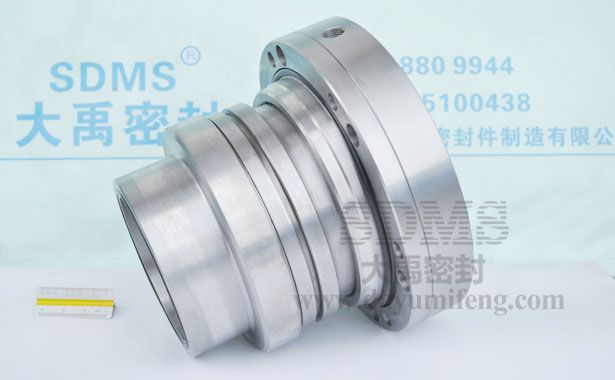

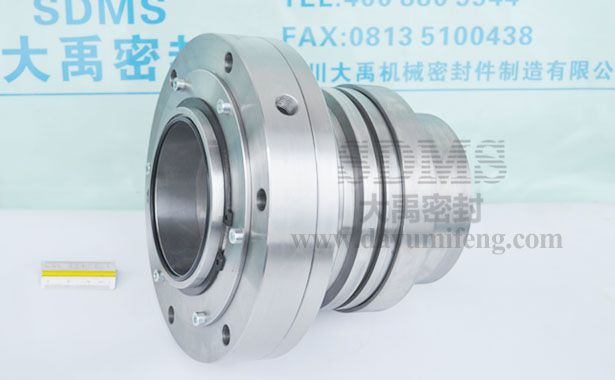

Model No.: SLZC200-760   Style: cartridge mechanical seals

Material
Sealing ring : hard metal
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single cartridge mechanical seals for SLZC series pump and chemical standard pumps seals of Shandong Shuanglun Co., Ltd.application. Single face seal structure,in order to adapt to all kinds of working condition of slurry, the seal ring is chosen good effect of hard metal material, the other substrate structure can be flexible to choose from different kinds of working condition, our company has accumulated rich experience after years of development,we can provide the best material matching to media.

Recommended Applications Pumps and Rotating Equipment
Shandong Shuanglun Co., Ltd.
SSC pump, SLZC series pump,SLZC250,SLZC200-760-760,SLZC300,SLZC300-600-600

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un fabricante large experiencia de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos. Fabrica y venta de sello mecanico integral, sellos de cartucho doble, sellos mecanicos de fuelle, cierres mecanicos para fuelle metálico para bombas industriales,tanques mezcladores, ejes de embarcaciones,etc.
Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas












view:1214    lable:ssc pump seal,shuanglun pump seal, slurry pump seal china, mechanical seals china,SLZC pump seal china,,SLZC250, SLZC200-760-760, ,chemical standard pumps seals,mechanical seals manufacture china, venta cierres mecanicos,  Alumina industry  Chemical industry  Fertilizer  Mining  Pharmaceutical  Chemical standard pumps  Process pumps  Slurry pump,Mud pumps,Sludge pump  Water pumps  Shandong Shuanglun Co., Ltd.
Application
Design features
Single cartridge seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1100 r/min
Shaft via:112 mm
Technical data
