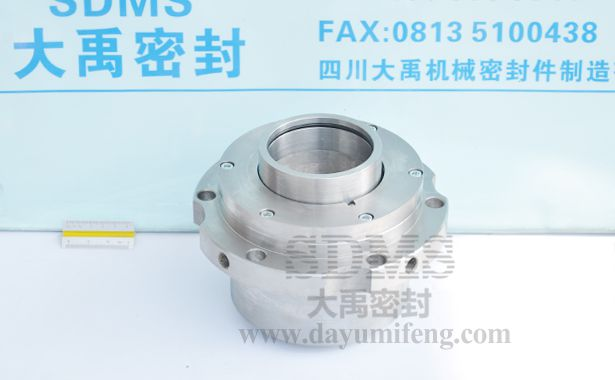

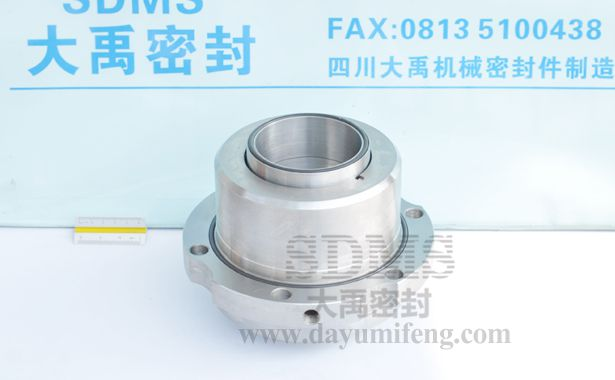

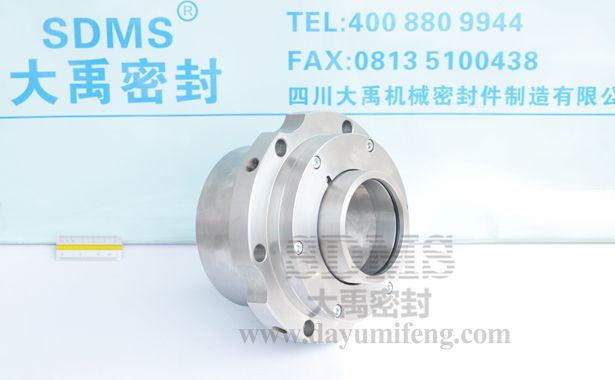

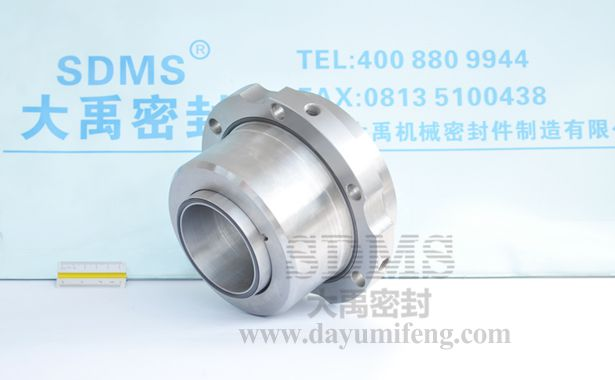

BB-80 seal for mud pump

Product Description:Double cartridge mechanical seals for Seaflow pump application.
Product Description









Model number:  mechanical seals SDMSSEAL- BB-80

Style:     Cartridge mechanical seals
Place of origin:   Sichuan, China,products with patents
Certification:  CE, API Q1,ISO ISO9001,QS
HS code of mechanical seals:  8484200090

Material
Sealing ring :  hard metal
Other metal parts :  2Cr13/304/316L
Auxiliary seal :  FPM/FKM/MVQ/NBR

Design features
Double cartridge mechanical seals for Seaflow pump application. The shaft diameter of BB seriesis is 80mm.Built in big spring, it can move relatively shaft sleeve within a certain range.It need to external flushing circulation with high pressure to prevent leakage sealing medium into flushing water environment.The condition of sealing medium is different, also can adjust flushing water pressure.It allow slight leakage,because the flushing water can  take leakage of medium.

Application factory
Seaflow pump

Application type
100LZ-475 150LZ-400
150LZ-420 150LZ-500

Packaging Details:Standard export carton/Wooden Box or according to the requirement
Delivery Detail:Normally15-30 days, according to the quantity

We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives




view:1101    lable:BB-80 seal,100LZ-475 seal,150LZ-400 seal,150LZ-420 seal,150LZ-500 seal,mechanical seals,pusher seal,double cartridge seals,mud pump seal,  Chemical industry  Environmental protection  Fine chemical  Oil refining  Pharmaceutical  Corrosive medium pump  Oil pump  Sewage pumps  Slurry pump,Mud pumps,Sludge pump  Trash pump  Water pumps  Seaflow pump
Application
Design features
Double cartridge seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:1 Mpa
Rinse:External flushing circulation
Speed:1500 r/min
Shaft via:80 mm
Technical data
