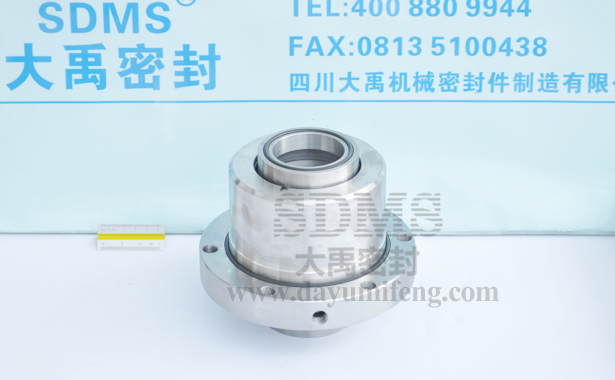

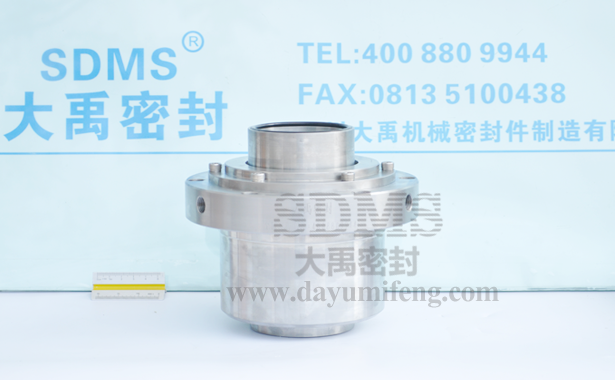

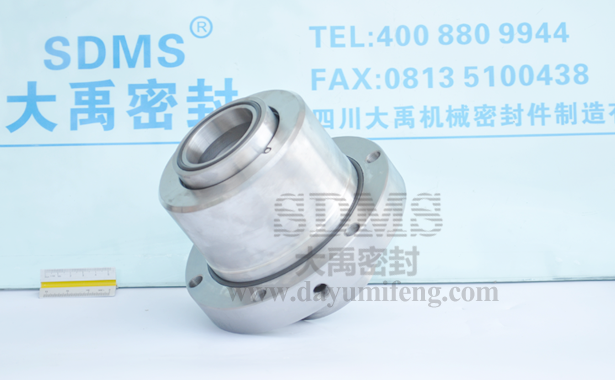

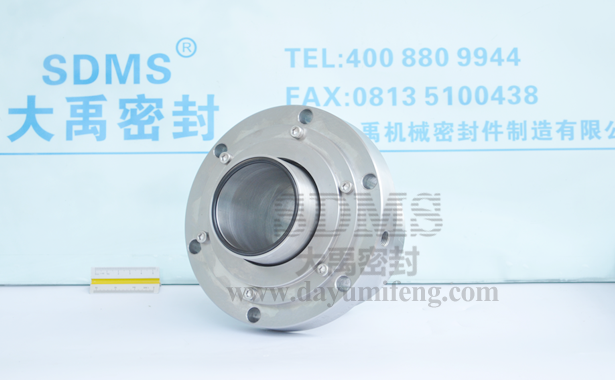

BB-70 seal for sewage pump

Product Description:Double cartridge mechanical seals BB series for Seaflow pump application.
Product Description









Model number:  mechanical seals SDMSSEAL- BB-70

Style:     Cartridge mechanical seals
Place of origin:   Sichuan, China,products with patents
Certification:  CE, API Q1,ISO ISO9001,QS
HS code of mechanical seals:  8484200090

Material
Sealing ring :  hard metal
Other metal parts :  2Cr13/304/316L
Auxiliary seal :  FPM/FKM/MVQ/NBR

Design features
Double cartridge mechanical seals BB series for Seaflow pump application. The shaft diameter of BB series is 70mm.It was built in big spring,if the position of shaft sleeve changes,it dones not affect spring elastic force, the two sets of sealing ring always be compensated stable strength, sealing effect stable for long time. It needs external high pressure flushing circulation to prevent leakage sealing medium to flushing environment when working on,it allow slight leakage by flushing water take it.

Application factory
Seaflow pump

Application type
80LZ-410 80JZ-270
100LZA-360 100LZB-360
100LZ-400

Packaging Details:Standard export carton/Wooden Box or according to the requirement
Delivery Detail:Normally15-30 days, according to the quantity

We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives




view:1172    lable:80LZ-410 seal,80JZ-270 seal,100LZA-360 seal,100LZB-360 seal,100LZ-400 seal,mechanical seal,BB-70 seal , sewage pump seal,pusher seal,double cartridge seals,  Chemical industry  Chemical fiber  Corrosive medium pump  Condensate pump  Sewage pumps  Slurry pump,Mud pumps,Sludge pump  Seaflow pump
Application
Design features
Double cartridge seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:1 Mpa
Rinse:External flushing circulation
Speed:1600 r/min
Shaft via:70 mm
Technical data
