Home < Products < 200ZJ-A65-S

200ZJ-A65-S sello para lama de bomba

Product Description:Single mechanical seal for ZJ type slurry pump and irrigation pumps of SGB pump application
Product Description










Sdms Seal Co., Ltd. is one of the largest mechanical seals company, distributor and repaire in China.We produce small shaft seals,big shaft seals,balanced cartridge seal, unbalanced cartridge seal, cartridge seal equipped with flush, double cartridge seal suited for large pumps,heavy-duty, mixer seals,agitator seals, reactors seals for equipment revolving.We offer products to a wide range of mechanical seal users across the nation.We carry John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Aflas,AES,Sterling,Vulcan,Pac-Seal and Agualisa products.We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

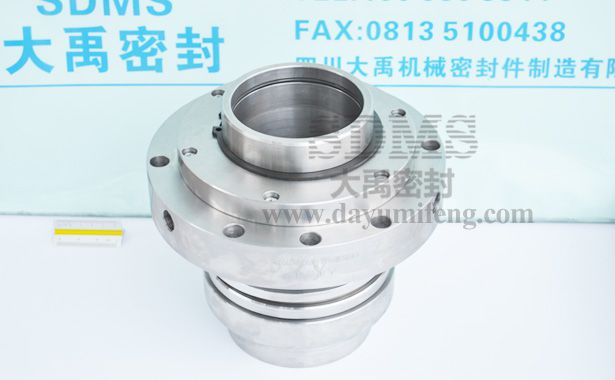

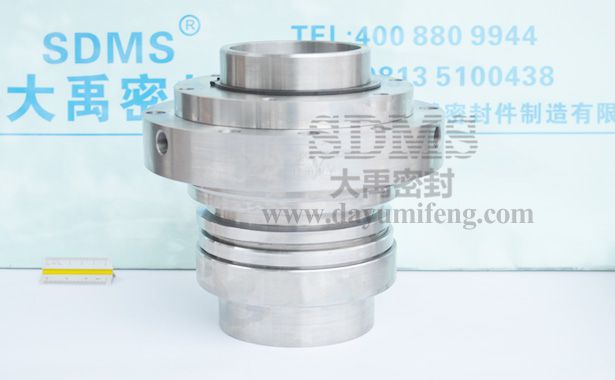

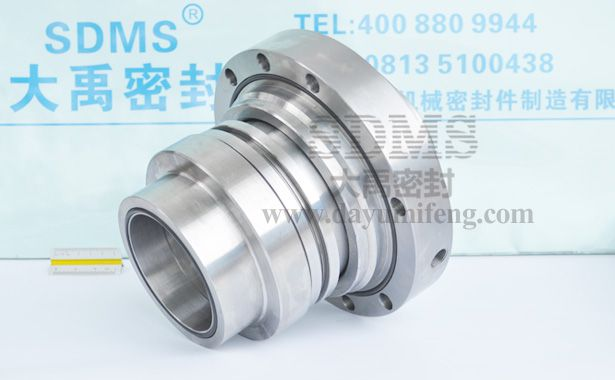

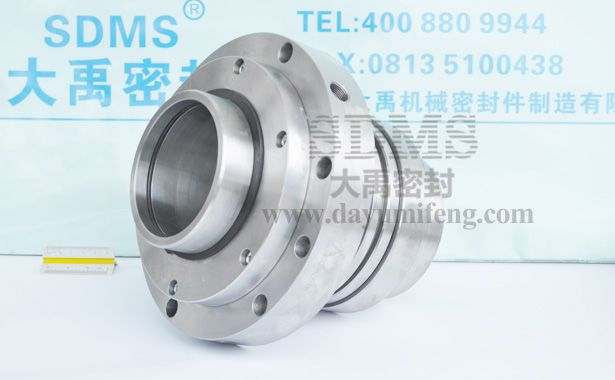

Model No.: 200ZJ-A65-S  Style: mechanical seals cartridge seals

Material
Sealing ring : hard metal
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single mechanical seal for ZJ type slurry pump and irrigation pumps of SGB pump application. Cartridge type and skeleton oil seal structure,big spring structure,external flushing circulation structure, the material of seal ring is hard metal, clamping type transmission structure,all it is our company's conventional slurry pump mechanical seal configuration.To easy installation and replacement and to expand the scope of use,the installation screw bore specially designed into 4 and 6 general structure.

Recommended Applications Pumps and Rotating Equipment
Shijiazhuang Industrial Pump Factory Co., Ltd.

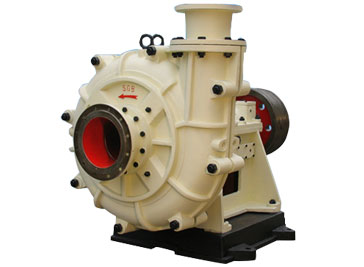

SGB pump,ZJ series slurry pump

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un sello mecanico proveedor completo de dise?o, fabricación y reparacion de sistemas de sellos mecanicos.Fabricamos sellos mecanicos empuje, sellos mecanicos fuelle, sellos mecanicos de fulle de elastomero,sellos de ballesta para lama de bomba, bomba para barro ,compresores, mezcladores, reactores,agitadores y otro equipo rotativo. Fabricamos sellos mecanicos equivalents
 John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.













view:1399    lable:mechanical seals,ZJ slurry pump,SGB pump ,SGB pump seals,irrigation pumps seals,200ZJ-A65-S,sgb bomba sello,sello lama bomba ,sello bomba barro,  Chemical industry  Fertilizer  Metallurgy  Agricultural spray pump  Desulphurization pump  Irrigation pumps  Pumping material pump  Process pumps  Slurry pump,Mud pumps,Sludge pump  Shijiazhuang Industrial Pump Factory Co., Ltd.
Application
Design features
Single cartridge seal
Pusher
Single spring seals
Independent of direction of rotation
Admissible axial movement ±2
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:External flushing circulation
Speed:1400 r/min
Shaft via:95 mm
Technical data
