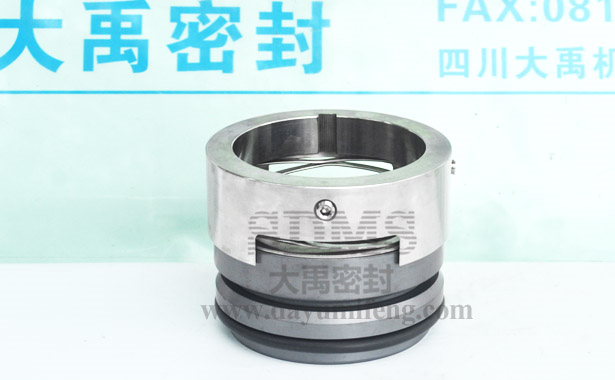

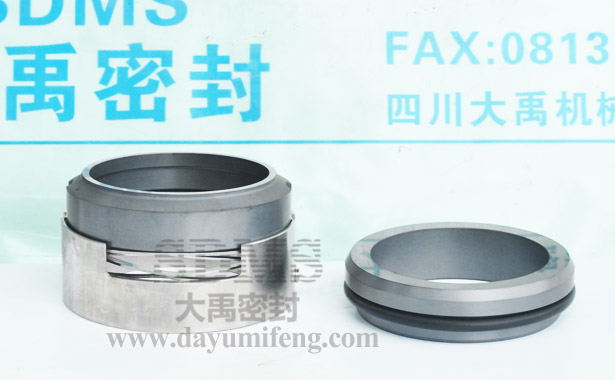

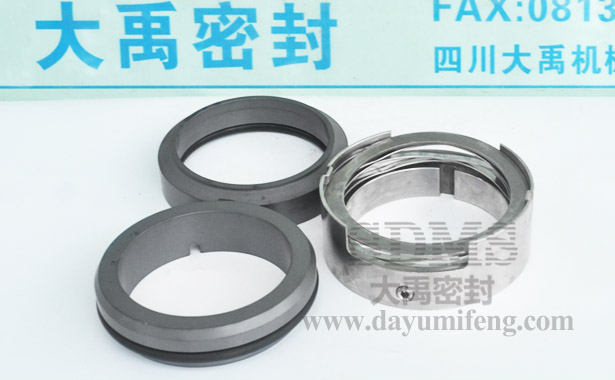

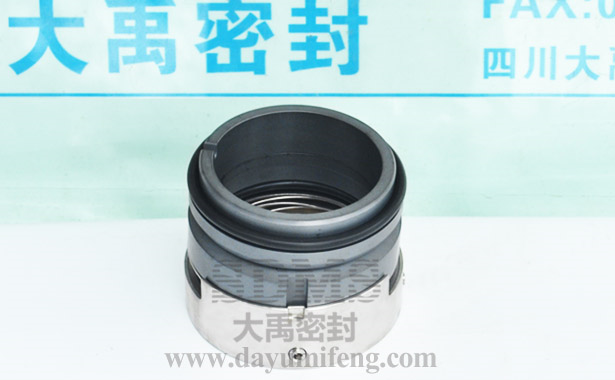

H75S2/80 bellows spring seal

Product Description:Universal single mechanical seal component type for high pressure oil pump application
Product Description










Sdms Seal Co., Ltd. is a complete supplier of design, manufacture and repair of industrial sealing systems and control fluid.We produce inch & metric sizes shaft seals, single spring shaft seals, multiple spring component seals,outside seals, single spring mechanical seals, multiple spring mechanical seals,welded metal bellows seals, rubber bellow seals, pusher seals for pumps, compressors, mixers, reactors, agitator and other equipment revolving. Our products can replacement of John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Aflas,AES,Sterling,Vulcan and customized OEM seals etc. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: H75S2  Style: mechanical seals component

Material
Sealing ring : SiC
Other metal parts : 304/316L
Auxiliary seal : FPM/FKM/MVQ

Design features
Universal single mechanical seal component type for high pressure oil pump application.H75S2 series mechanical seal similar to H7N series,but H75S2 has some keyway on the spring seat,it need to cooperate with the keyway on the pump shaft when you install it ,.To improve the stability of sealing.

Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment
H7 series

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un proveedor completo de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos.Fabricamos sello mecanico de onda, cierres mecánicos de resortes multiples, cierres mecánicos de fuelle, cierres para fuelle metálico, sellos de ballesta para bombas, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas


view:1196    lable:high pressure pump seal, bellows spring seal, bellows mechanical seal,proveedor sello mecanico onda,supplier mechanical seal,H75S2,H75S2 sello,H75S2 sello mecanico,H75S2 seal,  Chemical industry  Oil and gas industry  Pharmaceutical  Pulp and paper industry  Chemical pumps  Dosing pump  High pressure pump  Pulp pump  Process pumps  Transfer pump  General type pumps
Application
Design features
Single component seal
Bellows spring
Independent of direction of rotation
Parameters
Temperature:150 ℃
Pressure:0.8 Mpa
Rinse:Without flushing water
Speed:1700 r/min
Shaft via:80 mm
