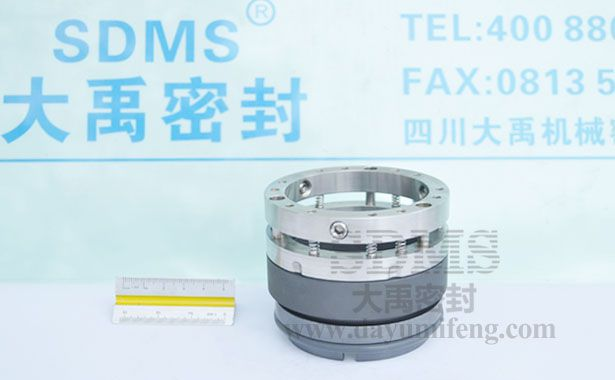

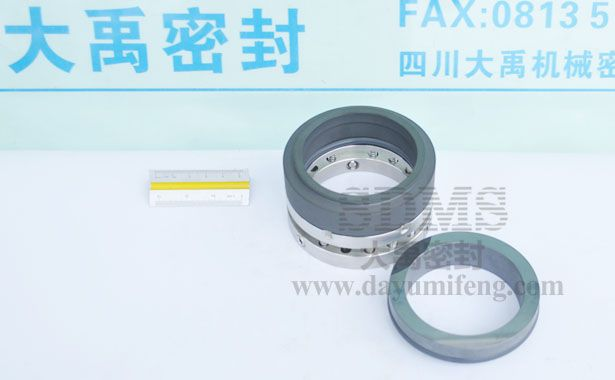

C8U-65 for chemical process pumps seals

Sdms Seal Co., Ltd. is a complete mechanical seals manufacturer of rotary seal design,engineering and repair of industrial sealing systems and control fluid.We produce inch & metric sizes shaft seals, single spring seals, multi spring seals,wave spring seals,metal bellows,welded metal bellows seals, rubber bellow seals for steel & paper industry,power generation,mining and rotating apllications.Our supply replacement seals for AES, Ansi,Anga,John Crane,Eagle Burgmann,Flowserve,Sharpe,Andritz,Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Pac seal,Us seal, Sterling,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: C8U-65     Style: mechanical seals component

Material
Sealing ring : hard metal/SiC/graphite
Other metal parts : 304/316L
Auxiliary seal : FPM/FKM/MVQ

Design features

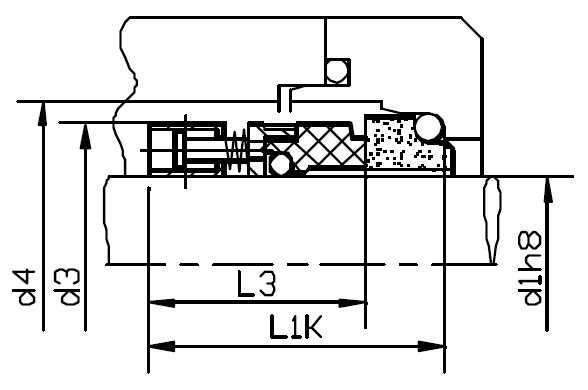

Component single mechanical seal for chemical process pump of Dalian acid resistant pump CZ series application, installation of mechanical seal depends on the size of chamber and configuration restrictions. Simple mechanical seal structure, lightweight,easy installation replacement . Pieces of metal structures and sealing rings are a variety of optional materials,it can be configured according to the actual user, with the most affordable price to provide the most suitable products.

Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment
Dalian No.2 Acid Proof Pump Plant

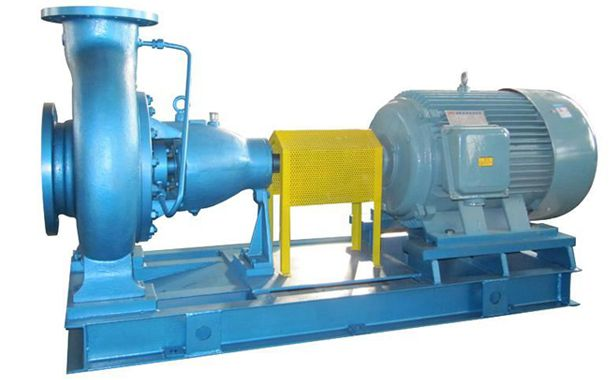

CZ chemical process pump

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es la fabrica líder de sello mecanico de mejor dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos.Fabricamos sellos mecanicos componentes, sellos mecanicos de resorte unico, cierres mecánicos de resortes multiples, cierres mecánicos de fuelle, sellos de ballesta, sellos tipo fuelles metal para industrias en general,industrial quimicas,petroquimicas,pulpa y papel y metalurgicas.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas
