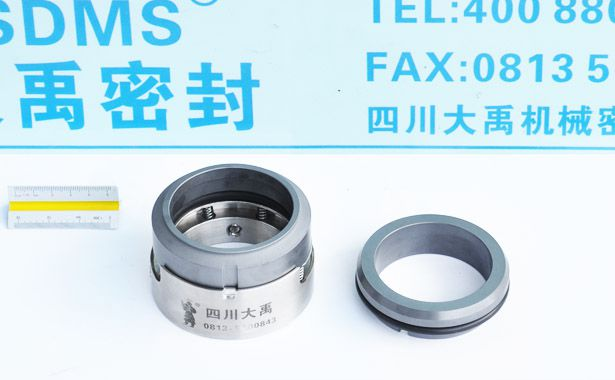

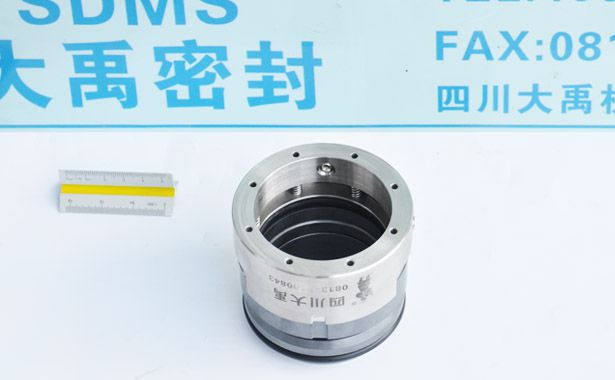

OEM replacement Burgmann seal M74N-60

Sdms Seal Co., Ltd. is a complete manufacturers, suppliers & exporters of mechanical seal in China.We produce inch & metric sizes shaft seals, single spring seals, multiple spring seals ,wave spring seals, Conical Spring Seal , PTFE Bellow Seals, Reverse Balance Seals, Cap Mechanical Seal for pumps, compressors , mixers, reactors, agitator and other equipment revolving. Our products can replacement of John Crane, Eagle Burgmann, Chesterton,Roplan, Flowserve, Sharpe, Andritz, Ekato, Grundfos, ITT,KSB, Lightnin, Sulzer, Warman, Flygt, Katrex, Aflas, AES, Sterling, Vulcan and customized seals etc. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: M74N-60  Style:  mechanical seals component

Material
Sealing Ring : TC/ SiC/Graphite
Other Metal Parts : 2Cr13/304/316L
Auxiliary Seal : FPM/FKM/MVQ

Design Features
OEM Eagleburgmann seal M74N-60 common type of simple mechanical seal.Single cartridge structure can be individually set for installation in a separate chamber of the pump mechanical seal can also be composed of two sets of double mechanical seal tandem use. Our company can according to the actual needs of customers, do a combination of specific design and other pieces of metal structures into cartridge mechanical seal. The mechanical seal is a cartridge structure, the installation process is easy to install because of operational difficulties affect the sealing effect, after the adoption of specific design, usually consists of a set cartridge mechanical seal, simplifying installation difficulty and reduce installation errors.

Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment
Replacement Burgmann

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es un proveedor completo de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos.Fabricamos cierres mecánicos componentes, cierres mecánicos monoresorte simples, cierres mecánicos multiresorte simples, cierres para fuelle metálico, sellos de ballesta para bombas, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane, Eagle Burgmann, Chesterton,Roplan, Flowserve, Sharpe, Andritz, Ekato, Grundfos, ITT, KSB, Lightnin, Sulzer, Warman, Flygt, Katrex, Aflas, AES, Sterling, Vulcan entre otros. Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas
