ZJ-125 for Shijiazhuang Industrial Pump

Sdms Seal Co., Ltd. is a complete mech seals distributor of design, manufacture and repair of industrial sealing systems and control fluid. We offer products and services to a wide range of mechanical seal users international interchangeable with other manufacturers’ seals.We produce double face seal, single face seal, unbalanced mechanical seals, balanced mechanical seals,single spring mechanical seals, multiple spring mechanical seals,welded metal bellows seals, rubber bellow seals for pumps, compressors, mixers, reactors, agitator and similar application. Our supply replacement seals for AES, Ansi,Anga,John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Pac seal,Us seal, Sterling,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: ZJ-125    Style: mechanical seals component

Material
Sealing ring : hard metal/SiC
Other metal parts : 2Cr13/304/316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features

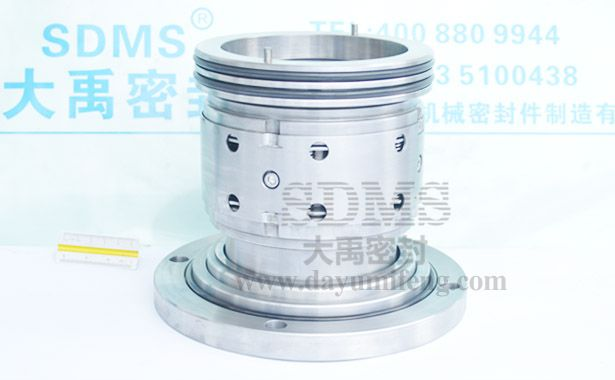

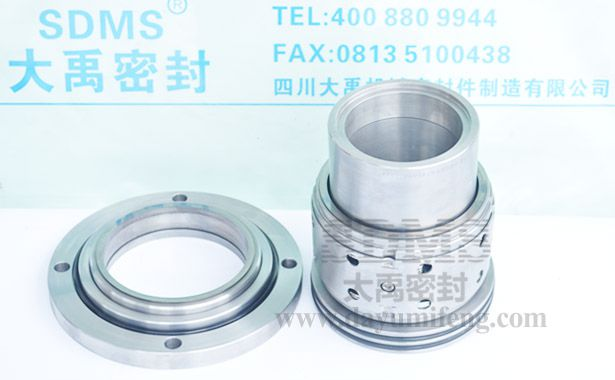

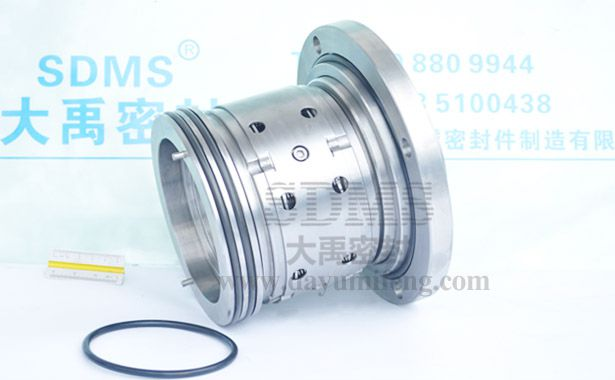

Double component mechanical seals for Shijiazhuang industrial pump ZJ series desulfurization pumps application.It was installed desulfurization pumps. Double sides mechanical seals structure, it need for an external high voltage (more than moving a sealing medium pressure) rinse water, wash water sealing medium and media together for the end-rings provide lubrication and seal flushing effect, atmospheric side seal ring alone against flushing water lubrication and cooling. Two sealing rings share a small spring, a small set of springs from the spring seat through-holes and fixed position, the spring moves back and forth along the axial direction of the process in the through hole, the elastic force will not be affected, to provide a stable two ring seal long-term compensation force. The advantage of this structure are: the normal functioning of the mechanical seal in the installation error of ± 5mm.

Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment
Hebei Tongda Pump Co., Ltd
Shijiazhuang Industrial Pump Factory Co., Ltd.

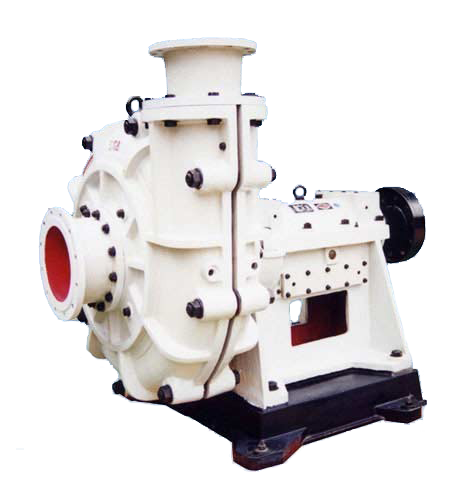

SGB pump,150ZJ-57, 200ZJ-60,150ZJ-60, 200ZJ-65,150ZJ-65, 150ZJ-70,150ZJ-71, 200ZJ-70

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.
We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es  la empresa líder de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos. Fabrica y venta de sellos mecanicos equilibrado,  sellos mecanicos no equilibrado, sellos mecanicos para fuelle metálico, sellos de ballesta para la bomba de lodo, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas
