S8-150-330.3DD seal for slurry pump

Sdms Seal Co., Ltd. is a complete supplier of design, manufacture and repair of industrial sealing systems and control fluid.We produce inch & metric sizes shaft seals, single seal, dual seal,wave seals,metal bellows,unbalanced seal,conical spring seal for pumps, compressors, mixers, reactors, agitator and similar applications. Our supply replacement seals for AES, Ansi,Anga,John Crane,Eagle Burgmann,Chesterton,Roplan,Flowserve,Sharpe,Andritz,Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman,Flygt,Katrex,Pac seal,Us seal, Sterling,Vulcan and many others. We also do repair of mechanical seals of all brands quickly and guarantee.We have certificate of API Spec Q1, CE, ISO9001, which will add to our product reliability.For product dimensions and more Information, please contact us.

Model No.: S8-150-330.3DD    Style: mechanical seals component

Material
Sealing ring : hard metal
Other metal parts : 316L
Auxiliary seal : FPM/FKM/MVQ/NBR

Design features
Single component mechanical seal for Andritz pump application. Simple structure,low price. Ordinary flat key drive,it is more stable than clamp on and screw tight drive. Wave spring structure, the elastic force of stability is not easy to be blocked for a variety of slurry conditions. Seal ring with the overall structure of the cemented carbide processing is made with a high corrosion resistance of 316 stainless steel base structure, the products can use a variety of complex conditions.

Advantage
Low cost,Simple design,Easy to install,Interchangeable parts,Adaptable to most pumps

Recommended Applications Pumps and Rotating Equipment

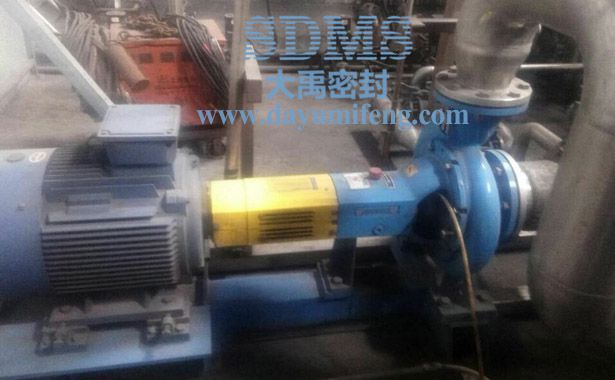

Replace Andritz pumps seals

Packaging Details:standard export carton/plywood box or according to the requirement.Delivery Detail:normally 15-30 days, according to the quantity.

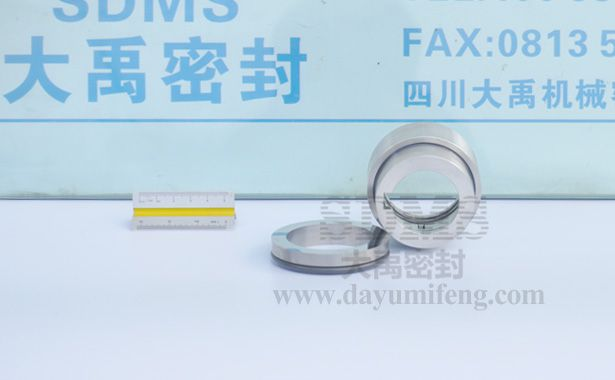

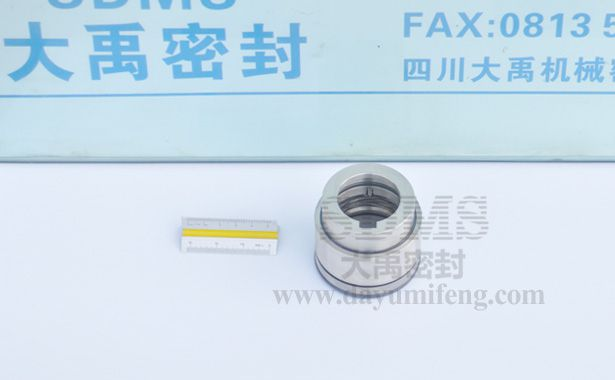

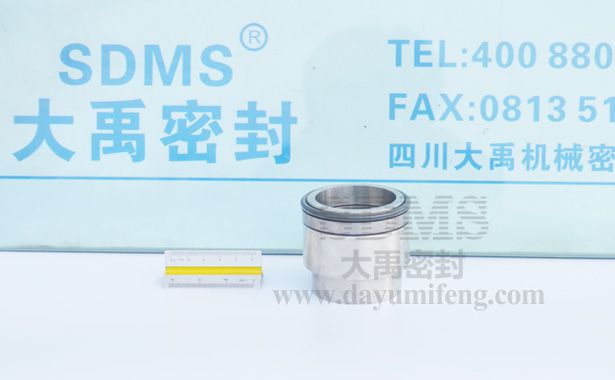

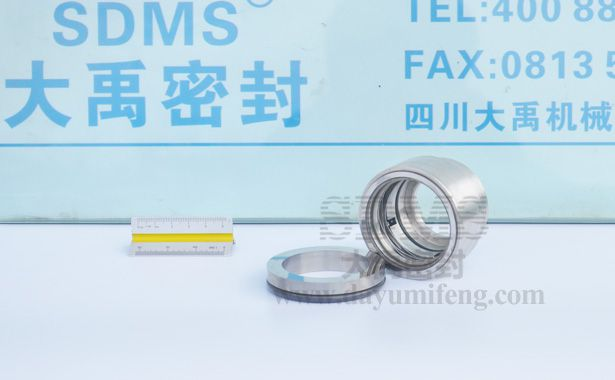

We are the real manufacturers from China, we can provide the picture of each product with multiple perspectives.

Sdms Seal Co.,Ltd. es  la empresa líder de dise?o, fabricación y reparacion de sistemas de sellado industrial y control de fluidos.Fabricamos sello mecanico sencillo, sello mecanico No-presurizado,sello mecanico presurizado,sello mecanico de resortes multiples, sello mecanico de fuelle para bombas, compresores, mezcladores, reactores,agitadores y otro equipo rotativo.Las marcas de sellos que reponemos diariamente son John Crane,Eagle Burgmann, Chesterton,Roplan,Flowserve,Sharpe, Andritz, Ekato, Grundfos,ITT,KSB,Lightnin,Sulzer,Warman, Flygt,Katrex,Aflas,AES,Sterling,Vulcan entre otros.Tambien hacemos reparación de sellos mecánicos de todas las marcas con rapidez y garantía. Estamos en condiciones de cerfificar API Spec Q1,CE, ISO9001,lo que agregará confiabilidad a nuestro producto.Por dimensiones y mayor informatión,contáctenos.

Nuestros materiales
Comportamiento químico, temperatura, viscosidad y presión de vapor, etc factores para elegir sellos mecánicos.Los sellos mecánicos pueden ser fabricados con diversos materiales.
Cuerpo del sello : aceros inoxidables304,316,316L y 2205 etc.
Cara rotatoria: hastelloy, carburo de silicio ,grafito y ceramica etc.
Asiento estacionario: hastelloy, carburo de silicio,grafito y ceramica etc.
Elastómeros: vitón, aflax, buna, propileno y silicona etc.

Ventajas
Bajo costo,Dise?o simple ,Fácil de instalar ,Repuestos intercambiables ,Adaptable a la mayoría de bombas
